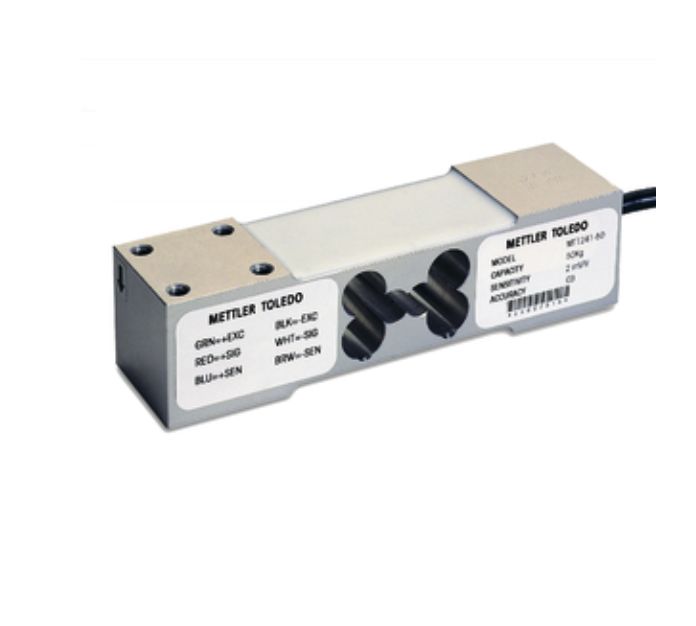

Name: 100kg Load Cell MT1241 with 2m Cable – Precision Industrial Weight Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Muat sel MT1241-100kg 2m
Availability: InStock

Rumah Produk

100kg Load Cell MT1241 with 2m Cable – Precision Industrial Weight Sensor

Detail produk:

Tempat asal:	Cina
Nama merek:	Mettler Toledo
Nomor model:	Muat sel MT1241-100kg 2m

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	kotak karon
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 ditetapkan per bulan

Kontak

Detil Deskripsi produk

produk:	Sel beban Mettler Toledo	Kapasitas maksimum:	220 lb (100 kg)
Bahan:	Aluminium, pasif	metrologi:	NTEP III 5.000D OIML C3
Keakuratan:	Standar	Peringkat perlindungan:	IP67
Ukuran Platform (LXW):	400 mm x 400 mm	Konektivitas:	Analog
kabel:	6,6 kaki (2 m)
Menyoroti:	100kg load cell with 2m cable , precision industrial weight sensor , Mettler Toledo load cell with warranty

100kg Load Cell MT1241 with 2m Cable – Precision Industrial Weight Sensor

Key Features

High-performance single point load cell with off-center compensation
Aluminum construction with passivated finish for durability
IP67 protection rating for harsh industrial environments
Includes ATEX Zone 1/21/2/22 approvals for hazardous areas
Metrology approvals: NTEP III 5,000d and OIML C3

Product Description

The MT1241 compression weigh module is designed for industrial weighing applications where its top plate and base plate are compressed when weight is applied. This load cell can be directly attached to the ground, piers, or structural beams, making it ideal for platform scales, tank weighing, hopper systems, and silo applications.

With a capacity range from 3 kg to 300 tons, these load cells are particularly suited for mid-size platforms. The MT1241 model features reliable strain gauge technology using premium aluminum materials to ensure long-term performance and accuracy.

Technical Specifications

Attribute	Specification
Product	Mettler Toledo Load Cell
Maximum Capacity	220 lb (100 kg)
Material	Aluminum, passivated
Material Number	71207453
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Analog
Cable	6.6 ft (2 m) PVC
