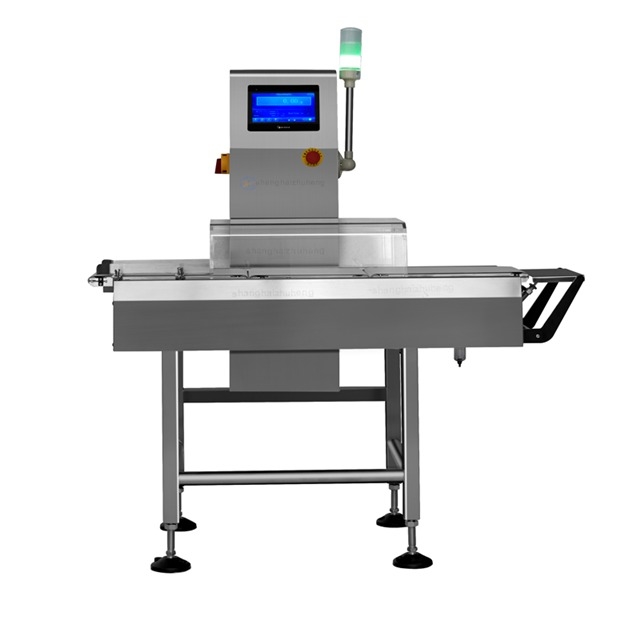

Name: Multi-Functional Checkweighers: Combining Weight, Metal Detection, and X-Ray Inspection
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Multi-Functional Checkweighers
Availability: InStock

Rumah Produk Timbangan Otomatis

Multi-Functional Checkweighers: Combining Weight, Metal Detection, and X-Ray Inspection

Detail produk:

Place of Origin:	CHINA
Model Number:	Multi-Functional Checkweighers

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 set
Harga:	Bisa dinegosiasikan
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Kontak

Detil Deskripsi produk

Produk:	Checkweighers multi-fungsional: Menggabungkan berat, deteksi logam, dan inspeksi sinar-X	Rentang Kapasitas:	2G-30kg
Ketepatan:	± 0,1g hingga ± 2g (tergantung kecepatan)	Penyimpangan minimum yang terdeteksi:	0,5% dari berat target
Sensitivitas (ferro):	0.3mm Ø	Sensitivitas (non-ferro):	0.5mm Ø
Sensitivitas (stainless steel):	0.8mm Ø	Resolusi deteksi:	0.5mm untuk bahan padat
Output energi:	80-160KV (dapat disesuaikan)	Deteksi perbedaan kepadatan:	Sensitivitas kontras 1%
Hasil:	150-800 item/menit	Kecepatan penolakan:	<50ms dari deteksi
Tingkat penolakan palsu:	<0,2%	Lebar Konveyor:	200-600mm (dapat disesuaikan)
Jenis sabuk:	PU, plastik modular, stainless steel	Peringkat Ip:	IP65 (Standar), IP69K (WASHDOWN)
Klasifikasi Cacat AI:	15+ kategori cacat yang telah ditentukan sebelumnya	Kalibrasi otomatis:	Periksa sendiri setiap hari dengan bobot kalibrasi
Pemeliharaan prediktif:	Komponen pemantauan keausan	Protokol industri:	OPC UA, Ethernet/IP, Modbus TCP
Output data:	CSV, XML, SQL, PDF	Konektivitas Cloud:	AWS IoT, Azure, Opsi Cloud Pribadi
Standar Keamanan Pangan:	HACCP, IFS, BRCGS	Standar Farmasi:	21 CFR Bagian 11, UE Lampiran 11
Keamanan Listrik:	CE, UL, CSA Bersertifikat
Menyoroti:	automatic checkweigher with metal detection , multi-functional checkweigher with x-ray inspection , industrial checkweigher with weight detection

Multi-Functional Checkweighers: Combining Weight, Metal Detection, and X-Ray Inspection

In a competitive and highly regulated manufacturing environment, ensuring product quality and safety is paramount. Multi-functional checkweighers integrate multiple inspection technologies into a single, compact unit, combining high-speed weighing with metal detection and X-ray inspection for comprehensive quality control.

Key Features

Combined weight verification, metal detection, and X-ray inspection in one system
High-precision weighing with accuracy from ±0.1g to ±2g
Advanced contaminant detection including metals, glass, stone, and bone
AI-powered defect classification with 15+ predefined categories
Cloud connectivity options for data analysis and reporting
Compliant with food safety and pharmaceutical standards

How Multi-Functional Checkweighers Work

Products move along a conveyor belt through sequential inspection stages:

Checkweighing: Measures product weight against target range
Metal Detection: Identifies ferrous, non-ferrous, and stainless steel contaminants
X-Ray Inspection: Detects dense contaminants through grayscale image analysis

Industry Applications

Food and Beverage: Detecting contaminants in packaged goods and verifying fill weights
Pharmaceuticals: Ensuring accurate dosing and detecting foreign objects
Cosmetics: Checking fill levels and product purity

Technical Specifications

Parameter	Specifications
Capacity Range	2g-30kg
Accuracy	±0.1g to ±2g (speed dependent)
Minimum Detectable Deviation	0.5% of target weight
Sensitivity (Ferrous)	0.3mm Ø
Sensitivity (Non-Ferrous)	0.5mm Ø
Sensitivity (Stainless Steel)	0.8mm Ø
Detection Resolution	0.5mm for dense materials
Energy Output	80-160kV (adjustable)
Density Difference Detection	1% contrast sensitivity

By consolidating multiple inspection points into one machine, manufacturers can streamline processes, reduce costs, save floor space, and ensure consistently safe, high-quality products.
