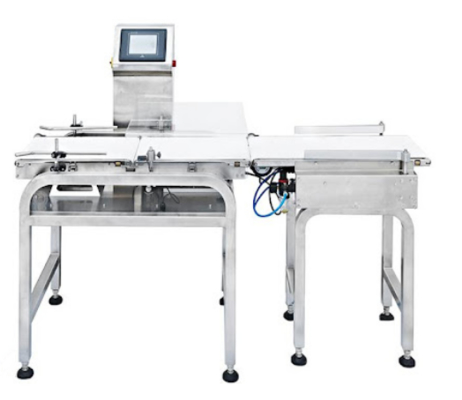

Name: Automated Checkweighing for Lean Manufacturing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Checkweighing otomatis untuk manufaktur lean
Availability: InStock

Rumah Produk Timbangan Otomatis

Automated Checkweighing for Lean Manufacturing

Detail produk:

Tempat asal:	CINA
Nomor model:	Checkweighing otomatis untuk manufaktur lean

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kotak Caron
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 set per bulan

Kontak

Detil Deskripsi produk

Product:	Automated Checkweighing for Lean Manufacturing	Weighing Speed:	300 items/min
Changeover Time:	<3 minutes	Accuracy:	±0.15% of reading
Energy Consumption:	0.5 kWh/1000 cycles	Stabilization Time:	≤0.3 seconds
Load Cell:	0.05% FS accuracy, IP66	Conveyor System:	300-600mm width, <10 sec belt change
Reject Mechanism:	20ms pneumatic, <0.5% false rejects	HMI Interface:	10" touch with one-touch recipes
SPC Capability:	Basic control charts
Menyoroti:	automated checkweighing system , lean manufacturing load cell , Mettler Toledo weighing equipment

Automated Checkweighing for Lean Manufacturing

Automated checkweighing systems are essential tools for implementing lean manufacturing principles, eliminating waste while ensuring product quality.

Key Benefits

100% weight verification without slowing production
Real-time process control to minimize overfill (reducing giveaway)
Automated data collection for continuous improvement
Immediate defect detection supporting Jidoka (autonomation) principles

Waste-Reducing Features

Giveaway Control - Dynamic weight target adjustment with statistical process control (SPC) limits
Material Savings - 0.5-1.5% reduction in overfill with automated feedback to filling machines

Continuous Improvement Tools

PDCA Cycles - Plan, Do, Check, Act methodology for weight variation analysis and improvement
Six Sigma Integration - Cp/Cpk monitoring and DMAIC methodology for chronic weight variation

System Advantages

Eliminating measurement waste through precision weighing

Supporting jidoka with instant defect detection

Enabling data-driven kaizen with real-time analytics

Reducing costs through optimized material usage

Technical Specifications

Parameter	Standard Model
Weighing Speed	300 items/min
Changeover Time	<3 minutes
Accuracy	±0.15% of reading
Energy Consumption	0.5 kWh/1000 cycles
Stabilization Time	≤0.3 seconds
Dynamic Giveaway Control	±0.1g precision
Quick-Change Tooling	<30 sec
Andon Integration	<2 sec response
Energy Recovery	Regenerative braking system
