Name: Integrated Weight Inspection Systems with Standard Operating Procedures
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Sistem Inspeksi Berat Terintegrasi dengan Prosedur Operasi Standar
Availability: InStock

Rumah Produk Timbangan Otomatis

Integrated Weight Inspection Systems with Standard Operating Procedures

Detail produk:

Tempat asal:	CINA
Nomor model:	Sistem Inspeksi Berat Terintegrasi dengan Prosedur Operasi Standar

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kotak Caron
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 set per bulan

Kontak

Detil Deskripsi produk

Product:	Integrated Weight Inspection Systems with Standard Operating Procedures	Weighing Range:	0.1g - 150kg
Accuracy Tolerance:	±0.1% of reading or ±0.2g (whichever is greater)	Repeatability:	±0.05% of capacity
Throughput Speed:	50-400 packages/minute	Minimum Detectable Deviation:	1σ process capability (Cp≥1.33)
Tare Compensation Range:	0-30% of gross weight	Conveyor Width:	200-600mm adjustable
Rejection Mechanism:	Pneumatic (0.6-1.0MPa)	IP Rating:	IP54 (standard)/IP66 (washdown)
Internal Calibration:	Auto-cal with NIST-traceable weights	External Calibration:	Annual by accredited lab
Test Weight Class:	F1 (routine)/E2 (high-precision)	Record Retention:	7 years minimum
Audit Trail:	Timestamped operator actions	Report Generation:	Customizable PDF/Excel formats
Operating Temperature:	5°C to 40°C	Humidity:	20% to 80% RH non-condensing
Vibration Limits:	<0.1g RMS (10-500Hz)	Preventive Maintenance:	Quarterly full system inspection
Component Lifespan:	Load cells: 5 years/10M cycles	Spare Parts Inventory:	Critical 48hr replacement guarantee
Menyoroti:	Mettler Toledo load cell inspection systems , integrated weight inspection SOP , load cell weight measurement systems

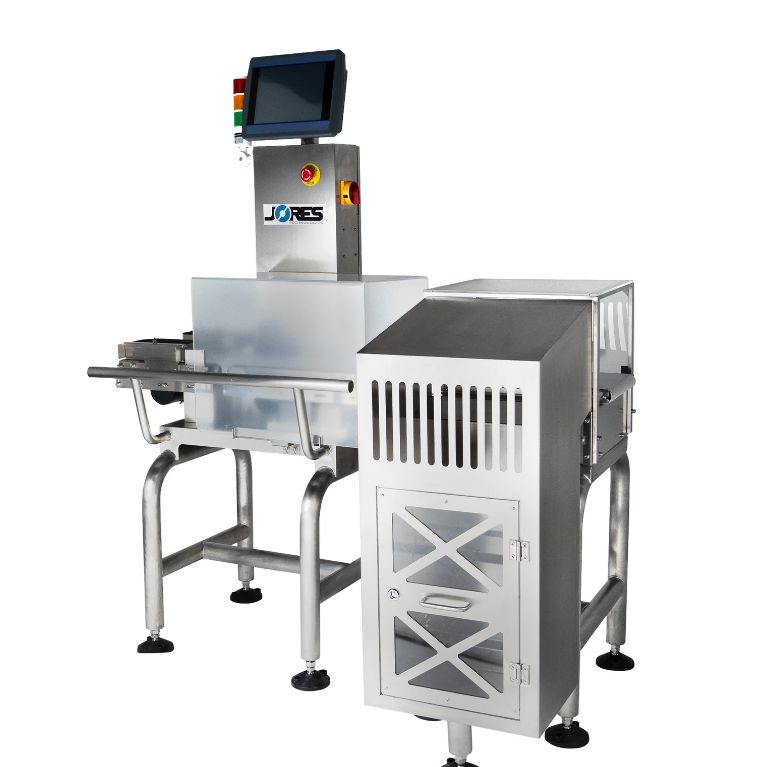

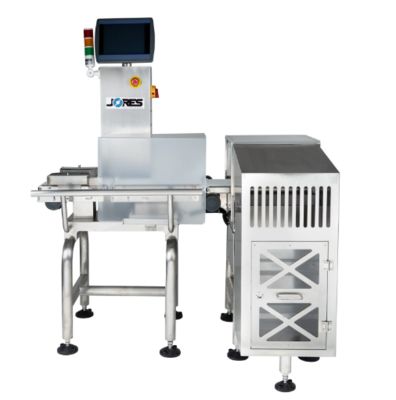

Integrated Weight Inspection Systems with Standard Operating Procedures

System Overview

Our Integrated Weight Inspection System combines automated weighing technology with structured Standard Operating Procedures (SOPs), essential for industries requiring precision and compliance such as pharmaceuticals, food and beverage, and chemicals. This solution ensures fast, accurate, and fully auditable weight inspections.

System Components

Automated Weighing Equipment: High-speed scales for dynamic product measurement
Data Management Software: Real-time collection, storage, and analysis of weight data with ERP/MES integration
Reject Mechanisms: Automated removal of non-compliant products from production lines

Key Benefits

The integration of automated systems with SOPs creates a powerful quality control tool that minimizes human error, optimizes production, and provides comprehensive documentation of all weight inspections.

Technical Specifications

Attribute	Value
Weighing Range	0.1g - 150kg
Accuracy Tolerance	±0.1% of reading or ±0.2g (whichever is greater)
Repeatability	±0.05% of capacity
Throughput Speed	50-400 packages/minute
Minimum Detectable Deviation	1σ process capability (Cp≥1.33)
Tare Compensation Range	0-30% of gross weight
Conveyor Width	200-600mm adjustable
Rejection Mechanism	Pneumatic (0.6-1.0MPa)
IP Rating	IP54 (standard)/IP66 (washdown)
Internal Calibration	Auto-cal with NIST-traceable weights
