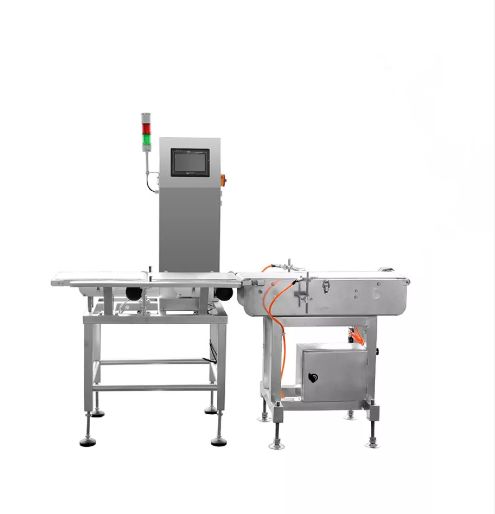

Name: Advanced Techniques in Weighing Inspection for Manufacturing and Logistics
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Penimbang Cek Multifungsi dengan Kombinasi Berat, Deteksi Logam, dan Pemeriksaan Sinar X
Availability: InStock

Rumah Produk Timbangan Otomatis

Advanced Techniques in Weighing Inspection for Manufacturing and Logistics

Detail produk:

Tempat asal:	CINA
Nomor model:	Penimbang Cek Multifungsi dengan Kombinasi Berat, Deteksi Logam, dan Pemeriksaan Sinar X

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kotak Caron
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 set per bulan

Kontak

Detil Deskripsi produk

Produk:	Teknik Lanjutan dalam Menimbang Inspeksi untuk Manufaktur dan Logistik	Berat bobot:	0.1g - 150kg
Kelas Akurasi:	± 0,1% dari membaca	Kecepatan berat:	50-300 ms/pengukuran
Kemampuan multi-jalur:	1-2 jalur	Integrasi AI:	Kontrol proses statistik dasar
Kompensasi Dinamis:	Kompensasi penyimpangan suhu	Antarmuka data:	USB, RS-232
Integrasi cloud:	Pencatatan Data Dasar	Konektivitas ERP:	Ekspor CSV
Kecepatan Konveyor:	0.1-1.5 m/s	Sistem penolakan:	Pusher pneumatik
Peringkat Ip:	IP54	Suhu Operasional:	0 ° C hingga 40 ° C.
Kisaran Kelembaban:	10% hingga 90% RH	Metrologi Hukum:	OIML R51 Kelas Y (B)
Keamanan Pangan:	Bahan yang sesuai dengan FDA	Inspeksi Hibrida:	Hanya berat badan
Komputasi tepi:	Pemrosesan onboard dasar	Pemulihan Energi:	Standar
Menyoroti:	Mettler Toledo load cell weighing inspection , manufacturing weighing inspection techniques , logistics weighing inspection load cell

Advanced Techniques in Weighing Inspection for Manufacturing and Logistics

Weighing inspection has evolved from basic weight verification to a smart, data-driven quality control process that enhances efficiency, reduces waste, and ensures compliance in manufacturing and logistics. Advanced techniques now incorporate AI, IoT, automation, and multi-sensor integration to optimize production lines and supply chains.

Key Advanced Weighing Inspection Techniques

AI & Machine Learning for Dynamic Weight Control

Smart Weight Profiling - AI algorithms analyze historical data to predict optimal fill levels, reducing product giveaway.
Anomaly Detection - Identifies irregular weight patterns caused by machine malfunctions or contamination.
Self-Learning Calibration - Automatically adjusts for environmental factors (temperature, vibration).

High-Speed Multi-Lane Checkweighing

Parallel Weighing Systems - Multiple lanes (2-8) for small, high-speed products (pills, candies, screws).
Vibration Dampening Technology - Ensures accuracy at speeds exceeding 800 packages per minute (ppm).

IoT & Industry 4.0 Integration

Real-Time Data Analytics - Cloud-based monitoring of weight trends, rejection rates, and OEE (Overall Equipment Effectiveness).
Predictive Maintenance - Alerts for belt wear, load cell drift, or calibration needs.
ERP/SCM Integration - Direct data feed to SAP, Oracle, or custom logistics software.

Hybrid Inspection Systems

Combined Weight + Vision + X-Ray - Detects not only incorrect weights but also:
- Missing components
- Deformed packaging
- Foreign contaminants (metal, glass, plastic)
Statistical Process Control (SPC) - Correlates weight data with other QC metrics.

Dynamic Weight Compensation

Automatic Feedback to Fillers - Adjusts filling machines in real time to minimize over/underweight products.
Tare Weight Learning - Adapts to packaging variations (e.g., bottle thickness differences).

Blockchain for Supply Chain Transparency

Tamper-Proof Weight Records - Immutable logs for audits and compliance (e.g., FDA, EU trade laws).
Smart Contracts - Automatically flags discrepancies in logistics (e.g., cargo weight mismatches).

Technical Specifications

Attribute	Value
Weighing Range	0.1g - 150kg
Accuracy Class	±0.1% of reading
Weighing Speed	50-300 ms/measurement
Multi-Lane Capability	1-2 lanes
AI Integration	Basic statistical process control
Dynamic Compensation	Temperature drift compensation
Data Interfaces	USB, RS-232
Cloud Integration	Basic data logging
ERP Connectivity	CSV export
Conveyor Speed	0.1-1.5 m/s
Rejection System	Pneumatic pusher
IP Rating	IP54
Operating Temperature	0°C to 40°C
Humidity Range	10% to 90% RH
Legal Metrology	OIML R51 Class Y(b)
Food Safety	FDA-compliant materials
Hybrid Inspection	Weight only
Edge Computing	Basic onboard processing
Energy Recovery	Standard
