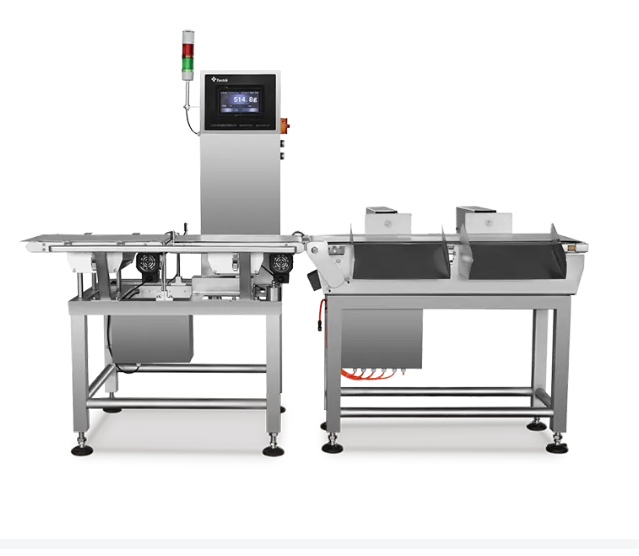

Name: Industrial Checkweighers Ensuring Product Compliance and Efficiency
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Timbangan Pemeriksa Industri
Availability: InStock

Rumah Produk Timbangan Otomatis

Industrial Checkweighers Ensuring Product Compliance and Efficiency

Detail produk:

Tempat asal:	CINA
Nomor model:	Timbangan Pemeriksa Industri

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kotak Caron
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 set per bulan

Kontak

Detil Deskripsi produk

Produk:	Timbangan Pemeriksa Industri	Divisi minimum:	0.001g - 20g
Kisaran kecepatan sabuk:	0,1-3.0 m/s (dikendalikan servo)	Bahan bingkai:	baja tahan karat 304/316L
AKU P:	Peringkat Perlindungan IP54 ke IP69K	FDA:	Bahan yang sesuai untuk kontak makanan
Suhu:	±0,1°C	Protokol komunikasi:	Profinet, Ethercat, OPC UA
Menyoroti:	Industrial checkweighers for product compliance , Mettler Toledo load cell checkweighers , Efficient industrial checkweighing systems

Industrial Checkweighers Ensuring Product Compliance and Efficiency

Attribute	Value
Product	Industrial Checkweighers
Minimum Division	0.001g - 20g
Belt Speed range	0.1-3.0 m/s (servo-controlled)
Frame material	Stainless steel 304/316L
IP	IP54 to IP69K protection ratings
FDA	compliant materials for food contact
Temperature	±0.1°C
Communication Protocols	PROFINET, EtherCAT, OPC UA

System Overview

Industrial checkweighers are precision electromechanical systems designed for in-motion weight verification in production and packaging lines. These automated quality control devices ensure products meet specified weight tolerances while optimizing operational efficiency across industries.

Mechanical Configuration

Conveyor System:
- Belt widths: 150-1200mm (modular)
- Materials: PU, PVC, stainless steel, or metal-detectable
- Speed range: 0.1-3.0 m/s (servo-controlled)
Frame Construction:
- Stainless steel 304/316L
- IP54 to IP69K protection ratings
- FDA-compliant materials for food contact

Advanced Functional Components

Weighing Module

Load Cell Technology:
- Strain gauge (standard)
- Electromagnetic force restoration (high-precision)
Dynamic Compensation:
- Active vibration damping
- Air current shielding
- Temperature stabilization (±0.1°C)

Smart Features & Connectivity

Industry 4.0 Integration

Communication Protocols:
- PROFINET, EtherCAT, OPC UA
- MQTT, REST API for cloud connectivity
Data Management:
- SQL database integration
- 1,000,000+ record capacity
- Blockchain-enabled traceability

Advanced Software

Statistical Process Control:
- Real-time Cp/Cpk calculation
- Trend analysis with AI prediction
Multi-product Handling:
- 1000+ product memory
- Automatic recipe changeover
- Barcode/RFID synchronization

Parameter	Specifications
Capacity	0.01g - 150kg
Accuracy	±0.005% to ±1% of reading
Speed	50 - 1000 items/min
Minimum Division	0.001g - 20g
Belt widths	150-1200mm (modular)
Belt Materials	PU, PVC, stainless steel, or metal-detectable
Belt Speed range	0.1-3.0 m/s (servo-controlled)
Frame Material	Stainless steel 304/316 L
Frame Speed	IP54 to IP 69
FDA	compliant materials for food contact
