Name: Industrial Weight Checkers Ensuring Product Compliance & Accuracy
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Pemeriksa Berat Badan Industri
Availability: InStock

Rumah Produk Timbangan Otomatis

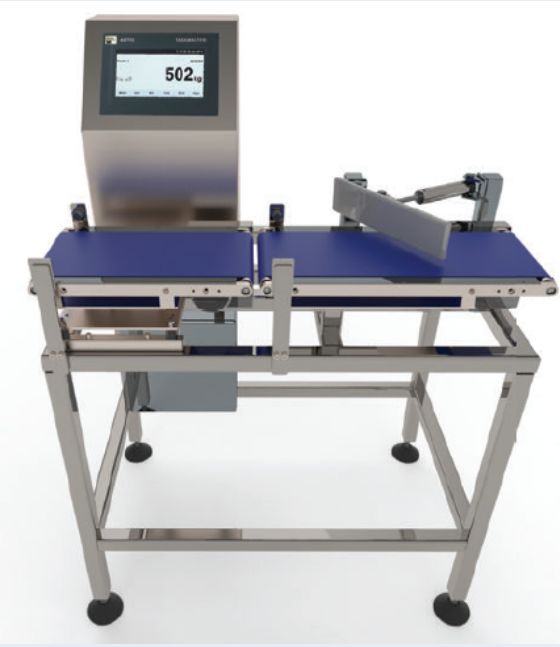

Industrial Weight Checkers Ensuring Product Compliance & Accuracy

Detail produk:

Tempat asal:	CINA
Nomor model:	Pemeriksa Berat Badan Industri

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kotak Caron
Waktu pengiriman:	10-30 hari
Supply Ability:	2000 set per month

Kontak

Detil Deskripsi produk

Produk:	Pemeriksa Berat Badan Industri	Lebar sabuk:	150-800mm (dapat disesuaikan)
Bahan sabuk:	PU, PVC, atau logam yang terdeteksi	Kecepatan sabuk:	5-120 m/menit (dikendalikan servo)
Bahan bingkai:	Stainless Steel (304/316L)	AKU P:	Perlindungan IP54 ke IP69K
Protokol:	OPC UA, MQTT, REST API	Integrasi cloud:	AWS IoT, Azure, Mindsphere
Analisis Data:	SPC, OEE, pemeliharaan prediktif	Kisaran kapasitas:	0,001g - 150kg
Ketepatan:	± 0,005% - ± 0,5% dari membaca	Divisi minimum:	0,001g - 10g
Kecepatan berat:	20 - 800 item/menit	Catu daya:	100-240V AC, 50/60Hz
Konsumsi daya:	50W - 1500W
Menyoroti:	Industrial weight checkers , Mettler Toledo load cell checkers , Product compliance weight measurement

Industrial Weight Checkers Ensuring Product Compliance & Accuracy

Precision electromechanical systems designed for in-line dynamic weighing of products during manufacturing and packaging processes. These systems provide real-time weight verification, ensuring products meet specified tolerances while optimizing production efficiency.

Key Technical Specifications

Mechanical Configuration

Belt System:
- Width: 150-800mm (adjustable)
- Material: PU, PVC, or metal detectable
- Speed: 5-120 m/min (servo-controlled)
Frame Construction:
- Stainless steel (304/316L)
- IP54 to IP69K protection
- Modular design for easy cleaning

Advanced Features

Dynamic Compensation: Vibration damping, air current shielding
Multi-zone Weighing: Up to 8 parallel lanes for small items
Temperature Stabilization: ±0.1°C control for critical applications

Industrial Applications

Food & Beverage

Portion Control: Meat (±1%), snacks (±2%), canned goods (±0.5%)
Compliance: FDA, EU 1169/2011, HACCP
Special Requirements: Washdown-ready (IP69K), allergen-free zones

Pharmaceuticals

Dosage Verification: Tablets (±0.5%), liquids (±1%)
Validation: 21 CFR Part 11, GMP Annex 11
Traceability: Batch logging with electronic signatures

Logistics & E-Commerce

Shipping Verification: Package weight vs. label claim
Automation: Barcode/RFID synchronization
Efficiency: 500+ parcels/hour processing

Integration with Smart Manufacturing

Industry 4.0 Connectivity

Protocols: OPC UA, MQTT, REST API
Cloud Integration: AWS IoT, Azure, MindSphere
Data Analytics: SPC, OEE, predictive maintenance

Hybrid Inspection Systems

Combination with: Metal detectors, X-ray, vision systems
Multi-sensor Fusion: Weight + dimension + image analysis

Parameter	Specification
Capacity Range	0.001g - 150kg
Accuracy	±0.005% to ±0.5% FS
Speed	50 - 800 items/min
Minimum Division	0.001g - 10g
IP Rating	IP54 to IP69K
Frame Material	Stainless steel (304/316L)
Dynamic Compensation	Vibration damping, air current shielding
Multi-zone Weighing	Up to 8 parallel lanes for small items
Belt material	PU, PVC, or metal detectable
Belt speed	5-120 m/min (servo-controlled)

Label:

Kontak Person: Mrs. Shirley

Tel: +86-15851932889

Faks: 86-519-68781609

Produk lainnya

C35 AdvancedLine Checkweigher for Ultimate Production Efficiency

Produk: Timbangan Cek AdvancedLine C35

Aplikasi Inspeksi: Kelengkapan Periksa Kontrol Berat Badan

Industri: Komponen logam, plastik dan elektronik kimia, makanan & minuman

Penimbangan akurasi: dari ± 0,01 g

Checkweigher Combinations with Vision Systems

Produk: Kombinasi periksa lebih tinggi dengan sistem penglihatan

Kamera: 2-8X Industri CMOS (5-20MP)

Optik: Lensa telecentric (perbesaran 0,1-0,5x)

penerangan: Array LED multi-sudut (RGB/W/UV/IR)

Checkweigher Integration in Packaging Lines

Produk: Integrasi Checkweigher di jalur pengemasan

Lebar Konveyor: 200–1200mm

Sinkronisasi kecepatan sabuk: 5–120 m/menit

Jarak produk: Min. 50mm di antara item

Pharmaceutical-Grade Automated Checkweighers for cGMP Compliance

Produk: Checkweighers otomatis tingkat farmasi

Berat bobot: 0.1mg - 500g (dapat disesuaikan hingga 5kg untuk curah)

Keterbacaan: 0,1mg (model mikro-balance), 1mg (standar)

Ketepatan: ± 0,1mg hingga ± 5mg (tergantung pada model)

Precision Checkweighers for Automotive Component Manufacturing

Produk: Presisi Checkweighers untuk pembuatan komponen otomotif

Berat bobot: 0,01g - 20kg (konfigurasi modular tersedia)

Keterbacaan: 0,001g (model mikro) hingga 0,1g (tugas berat)

Ketepatan: ± 0,005g (0-100g) hingga ± 0,2g (5-20kg)
