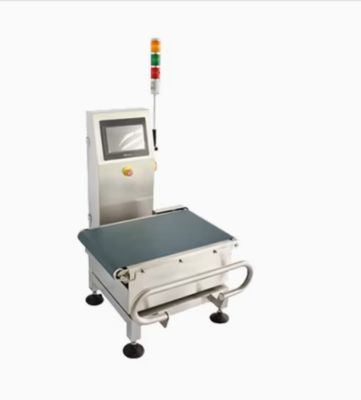

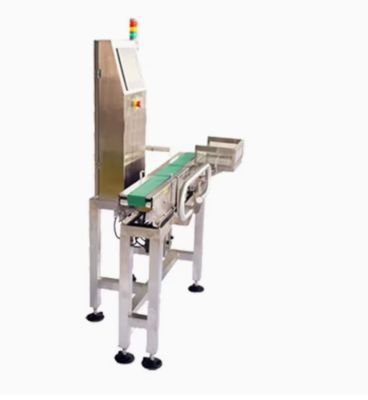

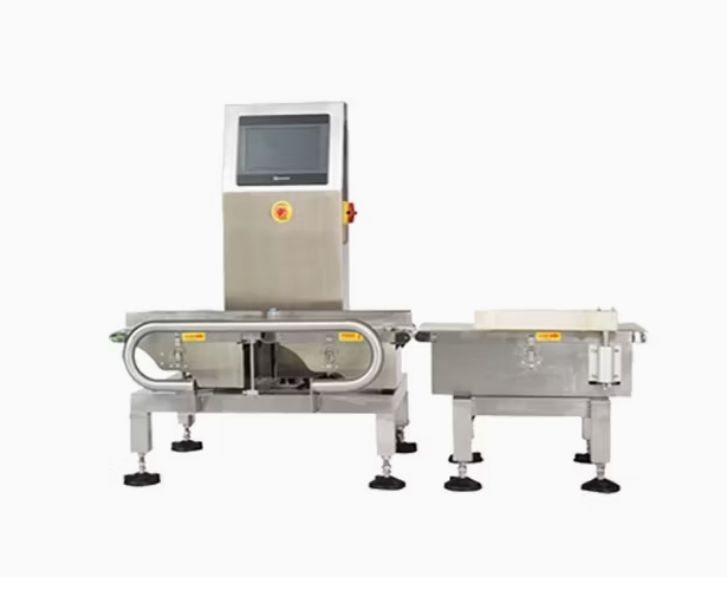

Name: Checkweigher Combinations with Vision Systems
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Checkweigher Combinations with Vision Systems
Availability: InStock

Rumah Produk Timbangan Otomatis

Checkweigher Combinations with Vision Systems

Detail produk:

Tempat asal:	CINA
Model Number:	Checkweigher Combinations with Vision Systems

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Packaging Details:	Caron box
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 set per bulan

Kontak

Detil Deskripsi produk

Produk:	Kombinasi periksa lebih tinggi dengan sistem penglihatan	Kamera:	2-8X Industri CMOS (5-20MP)
Optik:	Lensa telecentric (perbesaran 0,1-0,5x)	penerangan:	Array LED multi-sudut (RGB/W/UV/IR)
Frame rate:	Hingga 300fps (tergantung pada produk)	Resolusi:	0,001g
Pengukuran dimensi:	± 0,05mm	Verifikasi Warna:	150ppm
Cacat permukaan:	Cacat 0.1mm	Verifikasi Label:	300ppm
Ada/tidak ada:	500ppm	Kapasitas:	0.1g-25kg
Ketepatan:	± 0,05% FS	Kecepatan:	Hingga 600ppm
Menyoroti:	Mettler Toledo checkweigher with X-ray , checkweigher inspection combination load cell , X-ray inspection checkweigher

Checkweigher Combinations with Vision Systems

Key Specifications

Attribute	Value
Cameras	2-8x industrial CMOS (5-20MP)
Optics	Telecentric lenses (0.1-0.5X magnification)
Lighting	Multi-angle LED arrays (RGB/W/UV/IR)
Frame Rate	Up to 300fps (product-dependent)
Resolution	0.001g
Dimensional Measurement	±0.05mm
Color Verification	150ppm
Surface Defects	0.1mm defects
Label Verification	300ppm
Presence/Absence	500ppm
Capacity	0.1g-25kg
Accuracy	±0.05% FS
Speed	Up to 600ppm

System Overview

This advanced system combines high-precision dynamic weighing with multi-camera vision inspection for comprehensive quality control.

Machine Architecture

Modular Design: Integrated weighing and vision inspection system
Structural Components:
- Aluminum/stainless steel hybrid frame (Grade 304)
- Compact footprint: 1800(L) × 800(W) × 1400(H) mm
- IP65-rated enclosure (IP69K optional)
- Transparent safety guards with interlock switches

Material Flow Configuration

Infeed Section:
- Servo-driven belt conveyor (5-80 m/min)
- Product singulation system
- Barcode/RFID reader integration point
Inspection Zone:
- High-resolution vision tunnel
- Precision load cell weighing platform
- Multi-spectrum lighting array
Outfeed Section:
- Smart rejection system with 4-way sorting
- Verification sensors for quality tracking

Vision System Specifications

Parameter	Specification
Resolution	0.05mm/pixel at 50m/min
Dimensional Measurement	±0.05mm
Color Verification	150ppm
Surface Defects	0.1mm defects
Label Verification	300ppm
Presence/Absence	500ppm
