Name: The CX Combination Ultimate Solution for Product Integrity
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Kombinasi CX
Availability: InStock

Rumah Produk Timbangan Otomatis

The CX Combination Ultimate Solution for Product Integrity

Detail produk:

Tempat asal:	CINA
Nama merek:	Mettler Toledo
Nomor model:	Kombinasi CX

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kotak Caron
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 set per bulan

Kontak

Detil Deskripsi produk

Produk:	Kombinasi CX	Jenis pengemasan:	Kardus, karton, film metalisasi, plastik, nampan
Aplikasi Inspeksi:	Deteksi klip, pemeriksaan kelengkapan, deteksi kontaminasi, pemeriksaan tingkat isian	Karakteristik Produk:	Paket beku, kering, menengah, wadah terbuka, wadah bundar, produk masing-masing yang dibungkus, pake
Industri:	Komponen Kimia, Makanan & Minuman, Logam, Plastik dan Elektronik, Farmasi & Biotek	Penimbangan akurasi:	dari ± 0,01 g
Segmen industri:	Otomotif, Toko Rok dan Penganan, Bir, Anggur dan Minuman Beralkohol Lainnya, Kosmetik	Berat produk maks:	10 kg
Kecepatan garis maks:	100 m/mnt	Emisi x-ray:	<1USV/jam
Ukuran dioda:	0,4 mm	Generator sinar-X:	100 W, hingga 84 kV, hingga 1,2 Ma beryllium tabung 100 W, hingga 84 kV, hingga 3,3 ma tabung beryll
Menyoroti:	Mettler Toledo load cell combination , CX combination load cell , product integrity load cell solution

CX Combination Ultimate Solution for Product Integrity

Product Overview

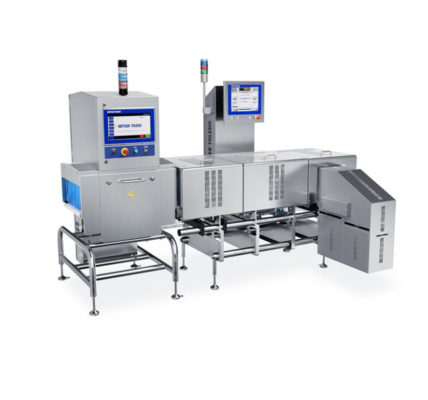

The CX Combination system is a highly advanced and versatile inspection solution that integrates a high-speed checkweigher with an advanced X-ray inspection system. Designed for demanding food, pharmaceutical, and consumer goods production environments, this all-in-one system provides comprehensive product safety and quality assurance.

Key Features

Combined high-precision weighing with advanced X-ray technology
Modular design for flexible configuration to meet budget and performance needs
Easy operation with intuitive HMI and front panel access for cleaning
Space-saving solution with seamless integration and shared components
Meets industry standards while accommodating individual requirements

Technical Specifications

Attribute	Value
Product	CX Combination
Packaging Type	Cardboard, Cartons, Metalized Film, Plastic, Trays
Inspection Application	Clip Detection, Completeness Check, Contamination Detection, Fill level Check
Max Product Weight	10 kg
Max Line Speed	100 m/min
X-ray Emissions	< 1uSv/hr
Diode Size	0.4 mm

Material No:

2499000400

IP Rating:

IP54, IP66

Compatible Software:

ProdX

Max Product Width:

400 mm

Max Throughput:

800 ppm

Label:

Kontak Person: Mrs. Shirley

Tel: +86-15851932889

Faks: 86-519-68781609
