CM Washdown Integrated Product Inspection for Wet Environments

CM Washdown Integrated Product Inspection for Wet Environments

Detail produk:
Tempat asal: CINA
Nama merek: Mettler Toledo
Nomor model: Kombinasi CM
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: Bisa dinegosiasikan
Packaging Details: Caron box
Waktu pengiriman: 10-30 hari
Supply Ability: 2000 set per month
Kontak
Detil Deskripsi produk
Produk: Kombinasi CM Jenis pengemasan: Tas, botol, bundel, karton, kasing, paket aliran, nampan
Aplikasi Inspeksi: Deteksi kontaminasi, deteksi benda asing, kontrol berat badan Karakteristik Produk: Paket beku, kering, menengah, wadah terbuka, wadah bundar, produk masing-masing yang dibungkus, pake
Industri: Komponen Kimia, Makanan & Minuman, Logam, Plastik dan Elektronik, Farmasi & Biotek Penimbangan akurasi: dari ± 0,05 g
Segmen industri: Toko roti dan manisan, bir, anggur dan minuman beralkohol lainnya, kosmetik, susu Berat produk maks: 10 kg
Kecepatan garis maks: 180 m/mnt Throughput maks: 800 ppm
Menyoroti:

washdown integrated load cell

,

wet environment product inspection

,

Mettler Toledo washdown load cell

CM Washdown Integrated Product Inspection for Wet Environments
Product Overview

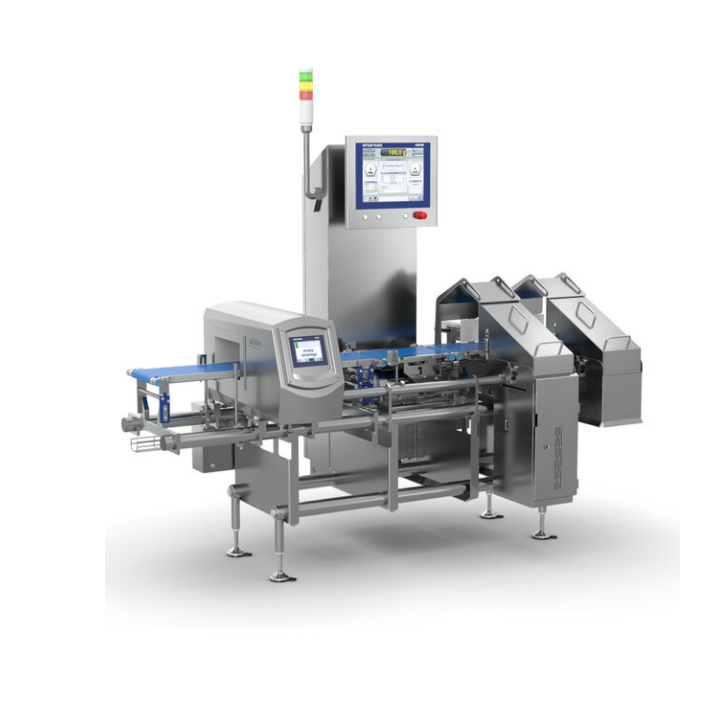

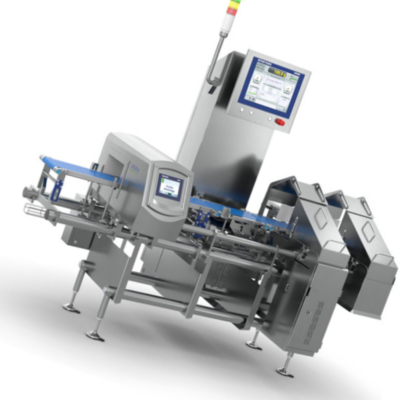

The CM Washdown Combination system is an integrated, rugged solution designed for product inspection in challenging wet and washdown environments. This two-in-one system combines a high-precision checkweigher with a sensitive metal detector in a single, robust frame, making it ideal for the food processing, meat, poultry, and dairy industries where hygiene and sanitation are paramount.

Key Features
  • 2-in-1 Solution: Combined metal detection and precision weighing system - the ideal critical control point for harsh washdown environments
  • Compact, Easy-to-clean Design: Sloped surfaces prevent liquid retention to minimize bacterial contamination, along with tool-less parts assembly offers easy maintenance
  • Compliance for Food Standards: All materials with direct food contact fully comply with Regulation (EC) 1935/2004, (EU) 10/2011 and FDA regulations for food safety
  • Reduced Cleaning Downtime: Quick, tool-less, failsafe disassembly and assembly of the metal detector and weighing conveyors supports rapid cleaning processes
Product Specifications
Material No: 2499000500
IP Rating: IP69
Compatible Software: ProdX
Connectivity: Ethernet TCP/IP, Fieldbus, OPC UA
Inspection Solution: Checkweighing-Metal Detection
Max Product Width: 400 mm
Max Weighing Zones: 7
Weighing Technology: EMFR, Strain Gauge
HMI: 12" Touchscreen, 15" Touchscreen, 7" Touchscreen
Max Product Height: 200mm
Frequencies: Dual Simultaneous up to 300 kHz, up to 600 kHz, up to 800 kHz
Product Attributes
Attribute Value
Product CM Combination
Packaging Type Bags, Bottle, Bundles, Cartons, Cases, Flow Packs, Trays
Inspection Application Contamination Detection, Foreign Body Detection, Weight Control
Product Characteristic Deep Frozen, Dry, Medium-Large Packages, Open, Round Container, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry Chemical, Food & Beverage, Metal, Plastic and Electronics Components, Pharma & Biotech
Weighing Accuracy from ±0.05 g
Industry Segment Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Cosmetics, Dairy
Max Product Weight 10 kg
Max Line Speed 180 m/min
Max Throughput 800 ppm
