Name: CM1200 Combination System Weight Control and Contaminant Detection
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: CM Combination
Availability: InStock

Rumah Produk Timbangan Otomatis

CM1200 Combination System Weight Control and Contaminant Detection

Detail produk:

Place of Origin:	CHINA
Nama merek:	Mettler Toledo
Model Number:	CM Combination

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kotak Caron
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 set per bulan

Kontak

Detil Deskripsi produk

Produk:	Kombinasi CM	Jenis pengemasan:	Tas, bundel, kardus, karton, kasing, kaleng komposit, paket aliran, baki
Aplikasi Inspeksi:	Pemeriksaan Kelengkapan, Deteksi Kontaminasi, Kontrol Berat Badan	Karakteristik Produk:	Paket beku, kering, menengah, wadah terbuka, wadah bundar, produk masing-masing yang dibungkus, pake
Industri:	Kimia, Makanan & Minuman, Farmasi & Biotek	Penimbangan akurasi:	dari ± 5 g
Segmen industri:	Toko roti dan manisan, bir, anggur dan minuman beralkohol lainnya, kosmetik, susu	Berat produk maks:	6 kg
Kecepatan garis maks:	150 M/Min	Throughput maks:	200 ppm
Menyoroti:	CM1200 weight control system , combination contaminant detection load cell , Mettler Toledo CM1200 system

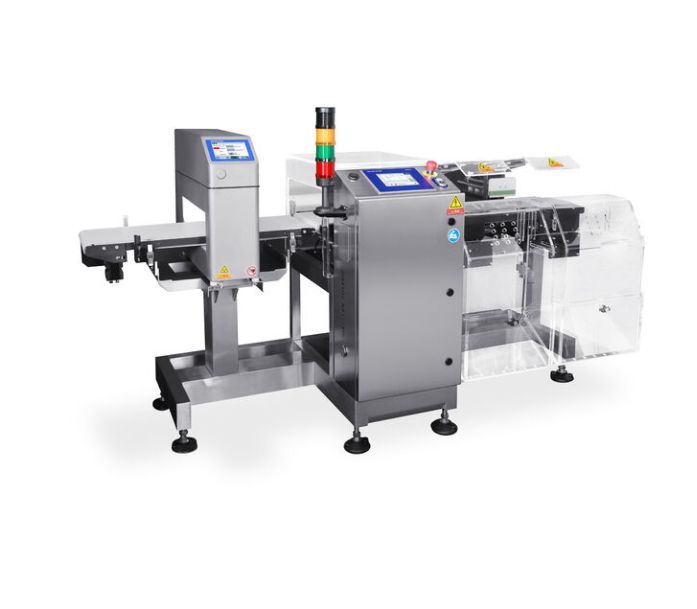

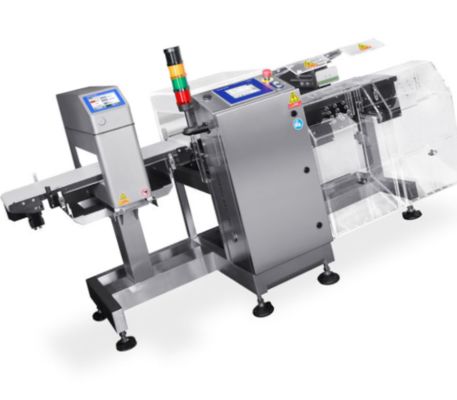

CM1200 Combination System Weight Control and Contaminant Detection

Product Overview

The Combicheck CM1200 is an advanced, compact inspection system that integrates a high-precision checkweigher and a sensitive metal detector into a single, space-saving unit. Designed for the food, pharmaceutical, and packaging industries, this system is a critical control point for ensuring both product quality and safety on your production line.

Key Features

Reliable Combination System: Compact design integrates checkweighing and metal detection in one space-saving unit
Efficient Product Handling: 50 performance-enhancing options with adjustable guide rails for optimal product flow
Brand Protection: Fully integrated Safeline ASN metal detector with high inspection sensitivity
Data Collection: Open interfaces with ten communication protocols for Industry 4.0 compliance

Product Attributes

Attribute	Value
Product	CM Combination
Packaging Type	Bags, Bundles, Cardboard, Cartons, Cases, Composite Cans, Flow Packs, Trays
Inspection Application	Completeness Check, Contamination Detection, Weight Control
Product Characteristic	Deep Frozen, Dry, Medium-Large Packages, Open, Round Container, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry	Chemical, Food & Beverage, Pharma & Biotech
Weighing Accuracy	from ±5 g
Industry Segment	Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Cosmetics, Dairy
Max Product Weight	6 kg
Max Line Speed	150 m/min
Max Throughput	200 ppm

Technical Specifications

Material No	3053782000
IP Rating	IP54, IP65
Compatible Software	ProdX
Connectivity	Ethernet TCP/IP, Fieldbus, OPC UA
Inspection Solution	Checkweighing-Metal Detection
Max Product Width	400 mm
Weighing Accuracy	from ±5 g
Frequencies	up to 800 kHz
HMI	7" Touchscreen
Product Flow	Conveyor

Label:

Kontak Person: Shirley

Tel: +86-15851932889

Faks: 86-519-68781609
