Name: CM Combination Integrated Weight Control and Contaminant Detection
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Kombinasi CM
Availability: InStock

Rumah Produk Automatic Checkweigher

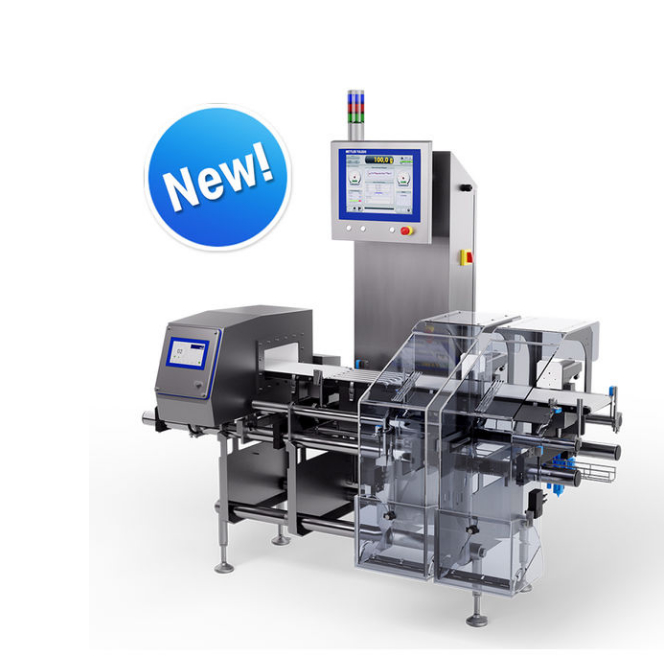

CM Combination Integrated Weight Control and Contaminant Detection

Detail produk:

Tempat asal:	CINA
Nama merek:	Mettler Toledo
Nomor model:	Kombinasi CM

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kotak Caron
Waktu pengiriman:	10-30 hari
Supply Ability:	2000 set per month

Kontak

Detil Deskripsi produk

Produk:	Kombinasi CM	Jenis pengemasan:	Tas, botol, bundel, karton, kasing, paket aliran, nampan
Aplikasi Inspeksi:	Deteksi kontaminasi, deteksi benda asing, kontrol berat badan	Karakteristik Produk:	Paket beku, kering, menengah, wadah terbuka, wadah bundar, produk masing-masing yang dibungkus, pake
Industri:	Kimia, Makanan & Minuman, Farmasi & Biotek	Penimbangan akurasi:	dari ± 0,01 g
Segmen industri:	Toko roti dan manisan, bir, anggur dan minuman beralkohol lainnya, kosmetik, susu	Berat produk maks:	10 kg
Kecepatan garis maks:	180 m/mnt	Throughput maks:	800 ppm
Menyoroti:	Mettler Toledo load cell weight control , integrated weight detection system , combination load cell contaminant detection

CM Combination Integrated Weight Control and Contaminant Detection

Product Overview

The CM Combination system is a highly efficient and space-saving solution that integrates a high-precision checkweigher and a sensitive metal detector into a single, compact unit. This two-in-one system serves as a critical control point for product safety and quality, ensuring every product meets weight specifications while being free from metal contaminants.

Key Features

Integrated Solution: Combines metal detection and checkweighing in one space-saving device
Configuration Flexibility: Mix and match metal detector and checkweigher models to meet specific inspection requirements
Compliance Assurance: Meets food safety requirements while providing precise 100% weight monitoring
Operator Efficiency: One-touch operation via checkweigher HMI for easy product changeovers and statistical monitoring

Technical Specifications

Attribute	Value
Product	CM Combination
Packaging Type	Bags, Bottle, Bundles, Cartons, Cases, Flow Packs, Trays
Inspection Application	Contamination Detection, Foreign Body Detection, Weight Control
Product Characteristic	Deep Frozen, Dry, Medium-Large Packages, Open, Round Container, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry	Chemical, Food & Beverage, Pharma & Biotech
Weighing Accuracy	from ±0.01 g
Industry Segment	Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Cosmetics, Dairy
Max Product Weight	10 kg
Max Line Speed	180 m/min
Max Throughput	800 ppm
Material No	2499000300
IP Rating	IP54, IP65
Compatible Software	ProdX
Connectivity	Ethernet TCP/IP, Fieldbus, OPC UA
Inspection Solution	Checkweighing
Max Product Width	400 mm
Max Weighing Zones	7
Weighing Technology	EMFR, Strain Gauge
HMI	12" Touchscreen, 15" Touchscreen, 7" Touchscreen
Product Flow	Conveyor

Label:

Kontak Person: Mrs. Shirley

Tel: +86-15851932889

Faks: 86-519-68781609
