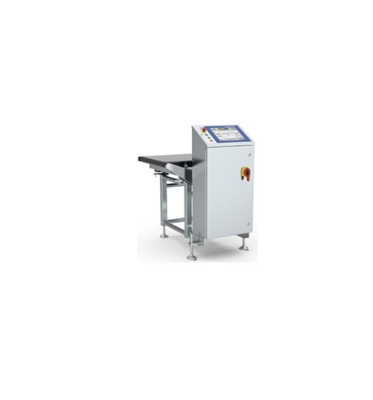

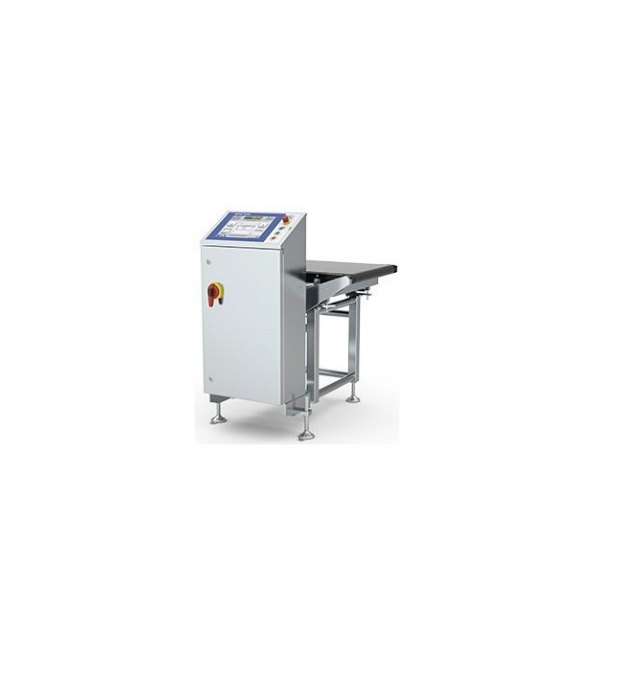

Name: C23 PlusLine Checkweigher Optimized for Food, Beverage Pharmaceutical Applications
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Timbangan Periksa PlusLine C23
Availability: InStock

Rumah Produk Timbangan Otomatis

C23 PlusLine Checkweigher Optimized for Food, Beverage Pharmaceutical Applications

Detail produk:

Tempat asal:	CINA
Nama merek:	Mettler Toledo
Nomor model:	Timbangan Periksa PlusLine C23

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Kotak Caron
Delivery Time:	10-30days
Menyediakan kemampuan:	2000 set per bulan

Kontak

Detil Deskripsi produk

Produk:	Timbangan Periksa PlusLine C23	Jenis pengemasan:	Tas, botol, bundel, kardus, karton, kasing, palet
Aplikasi Inspeksi:	Kelengkapan Periksa Kontrol Berat Badan	Karakteristik Produk:	Beku Beku, Kering, Paket Berat, Kontainer Kaku Tinggi
Industri:	Komponen kimia, makanan & minuman, logam, plastik dan elektronik, farmasi & biotek, transpor	Segmen industri:	Pertanian dan Makanan Curah, Otomotif, Roti dan Kembang Gula, Bir, Anggur dan Minuman Beralkohol Lai
Berat produk maks:	80 kg	Kecepatan garis maks:	150 M/Min
Throughput maks:	150 ppm	Aliran produk:	Konveyor
Menyoroti:	C23 PlusLine food checkweigher , beverage checkweigher with load cell , pharmaceutical checkweigher

C23 PlusLine Checkweigher Optimized for Food, Beverage & Pharmaceutical Applications

Product Attributes

Attribute	Value
Product	C23 PlusLine Checkweigher
Packaging Type	Bags, Bottle, Bundles, Cardboard, Cartons, Cases, Pallets
Inspection Application	Completeness Check Weight Control
Product Characteristic	Deep Frozen, Dry, Heavy Weight Packages, Tall Rigid Containers
Industry	Chemical, Food & Beverage, Metal, Plastic and Electronics Components, Pharma & Biotech, Transport and Logistics
Industry Segment	Agriculture and Bulk Foods, Automotive, Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Bulk Chemicals
Max Product Weight	80 kg
Max Line Speed	150 m/min
Max Throughput	150 ppm
Product Flow	Conveyor

Product Description

The C23 PlusLine Checkweigher is a highly versatile and robust system engineered for accurate weight control of heavy products in challenging industrial environments. It's designed for scalability and flexibility, allowing it to be customized to meet specific application needs in food, chemical, and logistics sectors.

Key Features

Scalable Weighing Solution: Compact and easy to operate, designed for high accuracy weight control of heavy loads up to 80 kg
Configurable to Customer Needs: Modular design offers full configurability including mechanical design, software functionality and data communication
Weighing Performance Options: Choice of standard or high performance load cells available to match your application requirements
Built for Challenging Environments: Designed for endurance and maximum reliability in dry, dusty or wet environments with IP54 or IP65 rating

Technical Specifications

Material No: 2400230000

IP Rating: IP54, IP65

Compatible Software: ProdX

Connectivity: Fieldbus, OPC UA

Inspection Solution: Checkweighing

Max Product Width: 1,100 mm

Max Weighing Zones: 7

Weighing Technology: Strain Gauge

HMI: 12" Touchscreen, 7" Touchscreen

Weighing Accuracy: from ±5 g

Label:

Kontak Person: Mrs. Shirley

Tel: +86-15851932889

Faks: 86-519-68781609
