Name: C21 StandardLine Checkweigher System for Quality Control
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: C21 StandardLine Checkweigher
Availability: InStock

Rumah Produk Timbangan Otomatis

C21 StandardLine Checkweigher System for Quality Control

Detail produk:

Place of Origin:	CHINA
Nama merek:	Mettler Toledo
Model Number:	C21 StandardLine Checkweigher

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Packaging Details:	Caron box
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 set per bulan

Kontak

Detil Deskripsi produk

Produk:	C21 Standardline Checkweigher	Jenis pengemasan:	Tas, bundel, kardus, karton, kasing, kaleng komposit, paket aliran, baki
Aplikasi Inspeksi:	Kelengkapan Periksa Kontrol Berat Badan	Karakteristik Produk:	Beku Beku, Kering, Paket Berat, Kontainer Kaku Tinggi
Industri:	Komponen Logam & Minuman Kimia, Plastik dan Komponen Elektronik Pharma & Biotech Transport d	Penimbangan akurasi:	dari ± 5 g
Segmen industri:	Pertanian dan makanan massal toko roti otomotif dan bir, anggur dan minuman beralkohol lainnya bahan	Berat produk maks:	80 kg
Kecepatan garis maks:	150 M/Min	Throughput maks:	100 ppm
Menyoroti:	C16 PlusLine checkweigher for dry environments , Mettler Toledo checkweigher with load cell , NSMTO checkweigher for industrial weighing

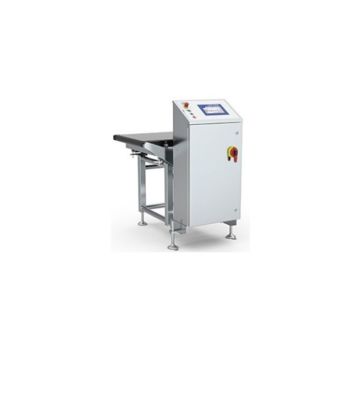

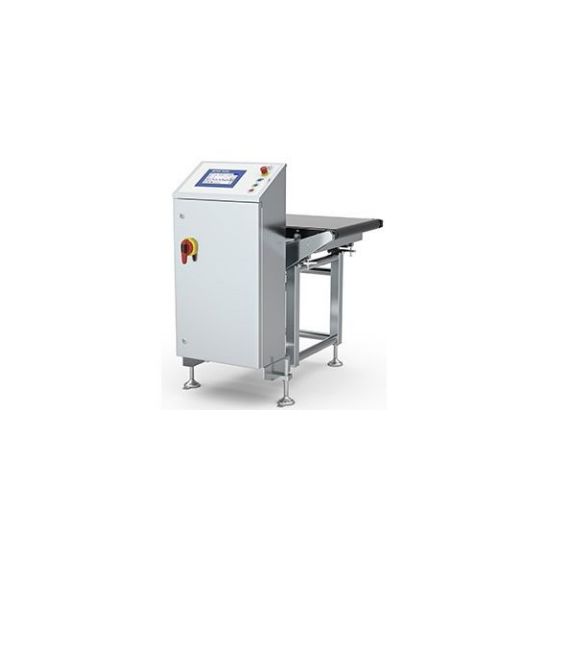

C21 StandardLine Checkweigher System for Quality Control

The C21 StandardLine Checkweigher is a robust and reliable system designed for cost-effective, end-of-line completeness checks for heavy products. It is a highly accurate and dependable solution, built to be easily integrated into any production line.

Key Features

Reliable completeness checks for products up to 80 kg
Easy integration into any production line
Intuitive operation with minimal training requirements
Clear text machine messages for easy understanding
Multiple communication options including Fieldbus and OPC technology
Robust design with proven METTLER TOLEDO strain gauge weighing technology

Technical Specifications

Attribute	Value
Product	C21 StandardLine Checkweigher
Packaging Type	Bags, Bundles, Cardboard, Cartons, Cases, Composite Cans, Flow Packs, Trays
Inspection Application	Completeness Check Weight Control
Product Characteristic	Deep Frozen, Dry, Heavy Weight Packages, Tall Rigid Containers
Industry	Chemical Food & Beverage Metal, Plastic and Electronics Components Pharma & Biotech Transport and Logistics
Weighing Accuracy	from ±5 g
Industry Segment	Agriculture and Bulk Foods Automotive Bakery and Confectionery Beer, Wine and Other Alcoholic Beverages Bulk Chemicals
Max Product Weight	80 kg
Max Line Speed	150 m/min
Max Throughput	100 ppm
Material No	2400210000
IP Rating	IP54, IP65
Compatible Software	ProdX
Connectivity	Fieldbus, OPC UA
Inspection Solution	Checkweighing
Max Product Width	1,100 mm
Max Weighing Zones	3
Weighing Technology	Strain Gauge
HMI	7" Touchscreen
Product Flow	Conveyor
