Name: C35 AdvancedLine Checkweigher for Ultimate Production Efficiency
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: C35 AdvancedLine Pharma Timbangan Periksa
Availability: InStock

Rumah Produk Timbangan Otomatis

C35 AdvancedLine Checkweigher for Ultimate Production Efficiency

Detail produk:

Tempat asal:	Cina
Nama merek:	Mettler Toledo
Nomor model:	C35 AdvancedLine Pharma Timbangan Periksa

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	kotak karon
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 ditetapkan per bulan

Kontak

Detil Deskripsi produk

Produk:	C35 AdvancedLine Pharma Timbangan Periksa	Aplikasi Inspeksi:	Kelengkapan Periksa Kontrol Berat Badan
Industri:	Pharma & Biotech	Penimbangan akurasi:	dari ± 0,01 g
Berat produk maks:	300 g	Kecepatan garis maks:	180 m/mnt
Throughput maks:	800 ppm	Solusi inspeksi:	Checkweighing
HMI:	15 "layar sentuh	Karakteristik Produk:	Kapsul, Produk Bungkus Individu Kecil, Paket Medium Kecil, Tablet
Segmen industri:	Kosmetik, Aditif Makanan, Nutraceuticals, Pharma	Jenis pengemasan:	Bundel, karton, kasing, botol
Menyoroti:	C35 Checkweigher for production efficiency , Mettler Toledo Checkweigher with load cell , AdvancedLine Checkweigher for industrial weighing

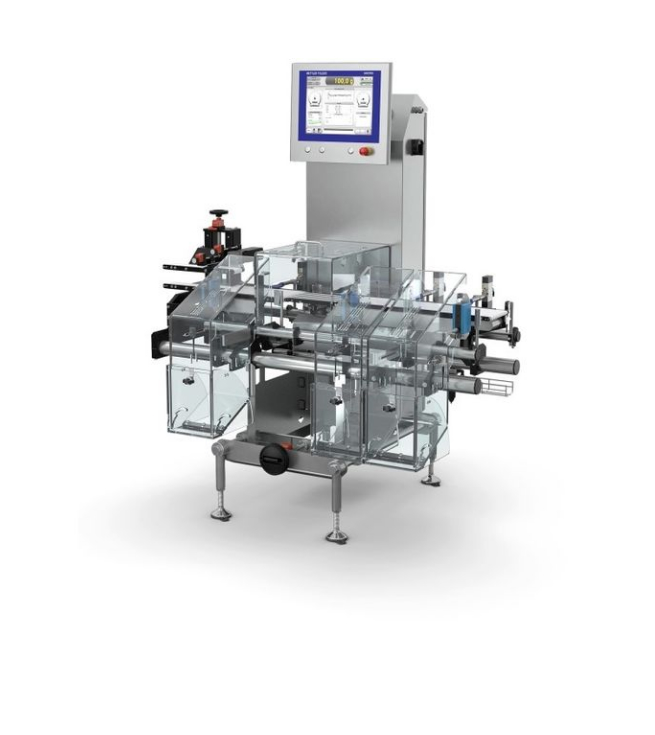

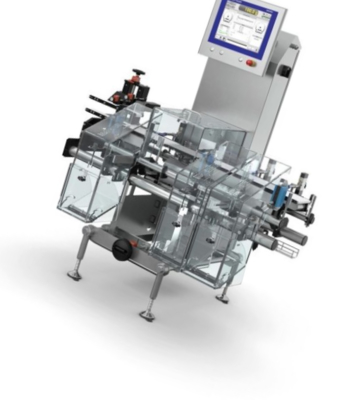

C35 AdvancedLine Checkweigher for Ultimate Production Efficiency

Product Overview

The Mettler Toledo C35 AdvancedLine Pharma Checkweigher is a high-performance weighing system engineered to meet the stringent standards of pharmaceutical and medical device industries. Combining industry-leading speed, accuracy, and hygienic design, it ensures maximum productivity and regulatory compliance.

Key Features

Precision weighing with dedicated options for pharmaceutical due diligence
Supports FDA 21 CFR Part 11 compliance and GMP requirements
Completeness checks ensure each medicine pack contains correct components
High accuracy (±0.01g) at fast speeds (up to 800 ppm throughput)
Quality assurance features including lockable catch bins and pharma statistics software

Technical Specifications

Attribute	Value
Product Flow	Conveyor
Weighing Accuracy	from ±0.01 g
Max Product Weight	300 g
Max Line Speed	180 m/min
Max Throughput	800 ppm
IP Rating	IP54, IP65
Compatible Software	ProdX
Connectivity	Ethernet TCP/IP, Fieldbus, OPC UA
Max Product Width	400 mm
Max Weighing Zones	7
Weighing Technology	EMFR
HMI	15" Touchscreen

Applications

Ideal for inspecting:

Capsules
Small individual wrapped products
Small-medium packages
Tablets
Bundles, cartons, cases, and vials

Industry Segments

Pharma & Biotech, Cosmetics, Food Additives, Nutraceuticals

Model Information

Model No: 24003500100

Label:

Kontak Person: Mrs. Shirley

Tel: +86-15851932889

Faks: 86-519-68781609
