C35 WD Inspection System Checkweigher for Wet Harsh Environments

C35 WD Inspection System Checkweigher for Wet Harsh Environments

Detail produk:
Tempat asal: Cina
Nama merek: Mettler Toledo
Nomor model: Sistem Pemeriksaan C35 WD
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: Bisa dinegosiasikan
Kemasan rincian: kotak karon
Waktu pengiriman: 10-30 hari
Menyediakan kemampuan: 2000 ditetapkan per bulan
Kontak
Detil Deskripsi produk
Produk: Sistem Pemeriksaan C35 WD Aliran produk: Konveyor
Aplikasi Inspeksi: Pengendalian berat Industri: Kimia, Makanan & Minuman, Farmasi & Biotek
Penimbangan akurasi: dari ±0.1 g Berat produk maks: 7 kg
Kecepatan garis maks: 90 m/mnt Throughput maks: 250 ppm
Konektivitas: Ethernet TCP/IP Fieldbus OPC UA Karakteristik Produk: Paket Medium-Large, Buka, Wadah Bundar, Paket Small-Medium, Basah
Segmen industri: Bir, anggur dan minuman beralkohol lainnya Susu, Daging & Unggas & Makanan Laut, Minyak dan Lemak, M Jenis pengemasan: Botol, bundel, gelas, nampan, tidak dikemas
Menyoroti:

C35 WD checkweigher for harsh environments

,

Mettler Toledo inspection system

,

wet environment checkweigher inspection system

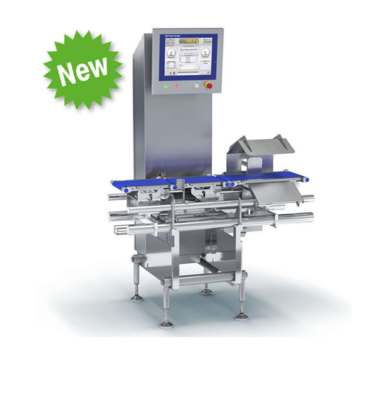

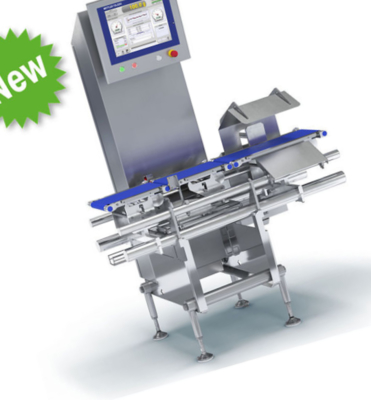

C35 WD Inspection System Checkweigher for Wet Harsh Environments
Product Overview

The Mettler Toledo C35 WD Inspection System is a high-performance, combination quality control solution specifically engineered to thrive in the most demanding washdown environments. By integrating an advanced checkweigher and a highly sensitive metal detector into a single compact system, the C35 WD delivers comprehensive product inspection and protection in wet and harsh production areas.

Key Features
  • Precision and Versatility: Built for harsh environments to withstand high-pressure cleaning with very high precision at fast speeds
  • Highest Accuracy: MID-certified weighing precision helps comply with regulations and reduces product waste
  • Hygienic Design: Easy access for cleaning with sloped surfaces to prevent liquid retention
  • Resilient Construction: Entire IP69-rated system withstands high-pressure cleaning and caustic detergents
Technical Specifications
Attribute Value
Product Flow Conveyor
Weighing Accuracy from ±0.1 g
Max Product Weight 7 Kg
Max Line Speed 90 m/min
Max Throughput 250 ppm
IP Rating IP69
Max Product Width 400 mm
Weighing Technology EMFR
HMI 15" Touchscreen
Industry Applications

Chemical, Food & Beverage, Pharma & Biotech, including:

  • Beer, Wine and Other Alcoholic Beverages
  • Dairy, Meat & Poultry & Seafood
  • Oils and Fats, Pet Food and Animal Feed
  • Ready Meals, Snack Foods
  • Water and other Non-Alcoholic Beverages
Compatible Packaging Types

Bottle, Bundles, Glass, Trays, Unpackaged
