Name: C35 AdvancedLine Checkweigher for Ultimate Production Efficiency
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Timbangan Cek AdvancedLine C35
Availability: InStock

Rumah Produk Timbangan Otomatis

C35 AdvancedLine Checkweigher for Ultimate Production Efficiency

Detail produk:

Tempat asal:	Cina
Nama merek:	Mettler Toledo
Nomor model:	Timbangan Cek AdvancedLine C35

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	kotak karon
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 ditetapkan per bulan

Kontak

Detil Deskripsi produk

Produk:	Timbangan Cek AdvancedLine C35	Aplikasi Inspeksi:	Kelengkapan Periksa Kontrol Berat Badan
Industri:	Komponen logam, plastik dan elektronik kimia, makanan & minuman	Penimbangan akurasi:	dari ± 0,01 g
Berat produk maks:	10 kg	Kecepatan garis maks:	180 m/mnt
Throughput maks:	800 ppm	Peringkat IP:	IP54, IP65
Konektivitas:	Ethernet TCP/IP Fieldbus OPC UA	Karakteristik Produk:	Paket beku, kering, menengah, wadah terbuka, wadah bundar, produk masing-masing yang dibungkus, pake
Segmen industri:	Otomotif, Toko Rok dan Penganan, Bir, Anggur dan Minuman Beralkohol Lainnya, Kosmetik, Susu	Jenis pengemasan:	Tas, botol, bundel, kardus, karton, kasing, kaleng komposit, paket aliran, kaleng logam, baki, VFFS
Menyoroti:	C35 Checkweigher for production efficiency , Mettler Toledo Checkweigher , AdvancedLine Checkweigher load cell

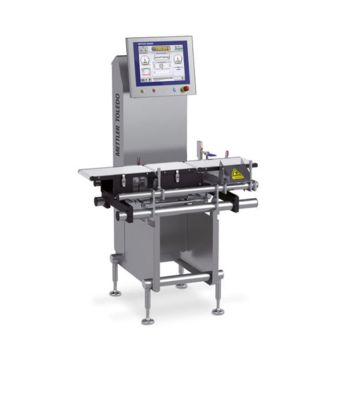

C35 AdvancedLine Checkweigher for Ultimate Production Efficiency

The Mettler Toledo C35 AdvancedLine Checkweigher is a top-of-the-line system designed for manufacturers who require the highest levels of performance and flexibility. It is engineered to deliver unmatched speed and precision for the most demanding production environments.

High Performance Checkweighing

Advanced FlashCell™ EMFR technology delivers maximum accuracy at throughputs up to 800ppm. The modular design offers customization to effectively handle any package type.

Key Features

Performance Excellence: Delivers flexibility to support all product sizes and weighing challenges with maximum precision at fast throughputs
Product Handling Excellence: Achieve maximum process stability and equipment efficiency through transition, transport, stability and sorting options for any packaging format
Software and Control Excellence: Exceptional process optimization with a wide range of standard and customizable, sophisticated software enhancements and control options

Technical Specifications

Attribute	Value
Model No	2400350000
IP Rating	IP65, IP54
Compatible Software	ProdX
Connectivity	Ethernet TCP/IP Fieldbus OPC UA
Inspection Solution	Checkweighing
Max Product Width	400 mm
Max Weighing Zones	7
Weighing Technology	EMFR
HMI	15" Touchscreen

Applications

Ideal for industries including: Chemical, Food & Beverage, Metal, Plastic and Electronics Components, Automotive, Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Cosmetics, and Dairy.

Package Compatibility

Handles various packaging types including: Bags, Bottles, Bundles, Cardboard, Cartons, Cases, Composite Cans, Flow Packs, Metal Cans, Trays, and VFFS.

Label:

Kontak Person: Mrs. Shirley

Tel: +86-15851932889

Faks: 86-519-68781609

Produk lainnya

Checkweigher Combinations with Vision Systems

Produk: Kombinasi periksa lebih tinggi dengan sistem penglihatan

Kamera: 2-8X Industri CMOS (5-20MP)

Optik: Lensa telecentric (perbesaran 0,1-0,5x)

penerangan: Array LED multi-sudut (RGB/W/UV/IR)

Industrial Weight Checkers Ensuring Product Compliance & Accuracy

Produk: Pemeriksa Berat Badan Industri

Lebar sabuk: 150-800mm (dapat disesuaikan)

Bahan sabuk: PU, PVC, atau logam yang terdeteksi

Kecepatan sabuk: 5-120 m/menit (dikendalikan servo)

Checkweigher Integration in Packaging Lines

Produk: Integrasi Checkweigher di jalur pengemasan

Lebar Konveyor: 200–1200mm

Sinkronisasi kecepatan sabuk: 5–120 m/menit

Jarak produk: Min. 50mm di antara item

Pharmaceutical-Grade Automated Checkweighers for cGMP Compliance

Produk: Checkweighers otomatis tingkat farmasi

Berat bobot: 0.1mg - 500g (dapat disesuaikan hingga 5kg untuk curah)

Keterbacaan: 0,1mg (model mikro-balance), 1mg (standar)

Ketepatan: ± 0,1mg hingga ± 5mg (tergantung pada model)

Precision Checkweighers for Automotive Component Manufacturing

Produk: Presisi Checkweighers untuk pembuatan komponen otomotif

Berat bobot: 0,01g - 20kg (konfigurasi modular tersedia)

Keterbacaan: 0,001g (model mikro) hingga 0,1g (tugas berat)

Ketepatan: ± 0,005g (0-100g) hingga ± 0,2g (5-20kg)
