Name: Advanced C33 PlusLine Checkweigher for Compliance-Driven Industries
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Timbangan Periksa PlusLine C33
Availability: InStock

Rumah Produk Timbangan Otomatis

Advanced C33 PlusLine Checkweigher for Compliance-Driven Industries

Detail produk:

Tempat asal:	Cina
Nama merek:	Mettler Toledo
Nomor model:	Timbangan Periksa PlusLine C33

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	kotak karon
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 ditetapkan per bulan

Kontak

Detil Deskripsi produk

Produk:	Timbangan Periksa PlusLine C33	Industri:	Komponen Logam Makanan & Minuman Kimia, Plastik dan Elektronik
Penimbangan akurasi:	dari ± 0,05 g	Berat produk maks:	7,5 kg
Kecepatan garis maks:	180 m/mnt	Peringkat IP:	IP54, IP65
Konektivitas:	Ethernet TCP/IP Fieldbus OPC UA	Solusi inspeksi:	Checkweighing
Teknologi penimbangan:	Pengukur regangan, emfr	Jenis pengemasan:	Tas, botol, bundel, kardus, karton, kasing, kaleng komposit, paket aliran, nampan, VFFS
Karakteristik Produk:	Beku Dalam, Kering, Paket Sedang-Besar, Wadah Bulat Terbuka, Produk Terbungkus Individu Kecil, Paket	Segmen industri:	Otomotif, toko roti dan permen Bir, anggur dan minuman beralkohol lainnya Kosmetik Susu
Menyoroti:	C33 PlusLine checkweigher for compliance , Mettler Toledo checkweigher , industrial checkweigher for regulated industries

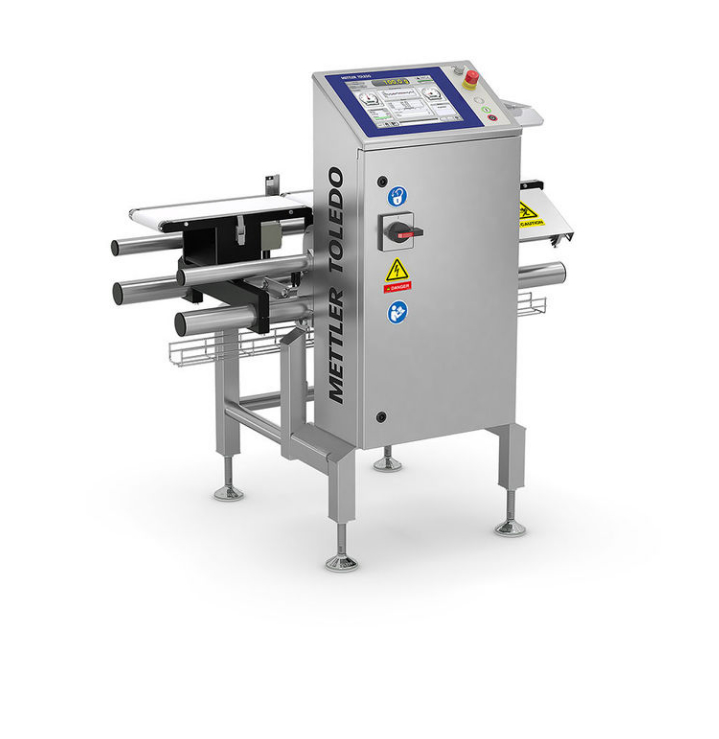

Advanced C33 PlusLine Checkweigher for Compliance-Driven Industries

The C33 PlusLine is a high-performance checkweigher engineered for maximum accuracy and throughput in demanding production environments. With its superior weighing technology, the C33 ensures precise weight verification and sorting at speeds of up to 400 packs per minute.

Versatile, Efficient Checkweighing

Flexible mid-level checkweigher for standard weighing applications featuring advanced FlashCell™ EMFR technology. Achieve high accuracy at throughputs up to 350 ppm for food and non-food applications in dry, wet and harsh environments.

Key Features

Efficiency Driven by Performance: Standardized, configurable options and open customization possibilities offer versatility
Advanced Integration Options: Available as space-saving combination system with metal detection or vision inspection technology
Performance in All Environments: Modular design with IP54, IP65 or IP69 rating delivers reliability in dry, wet or harsh conditions

Technical Specifications

Attribute	Value
Model No	2400330000
IP Rating	IP54, IP65
Compatible Software	ProdX
Connectivity	Ethernet TCP/IP, Fieldbus, OPC UA
Max Product Width	400 mm
Max Weighing Zones	5
Weighing Technology	EMFR, Strain Gauge
HMI	7" Touchscreen, 12" Touchscreen

Applications

Chemical, Food & Beverage, Metal, Plastic and Electronics Components industries
Packaging Types: Bags, Bottles, Bundles, Cardboard, Cartons, Cases, Composite Cans, Flow Packs, Trays, VFFS
Product Characteristics: Deep Frozen, Dry, Medium-Large Packages, Open Round Containers, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry Segments: Automotive, Bakery and Confectionery, Beer/Wine/Alcoholic Beverages, Cosmetics, Dairy
