Name: Dependable Accurate C31 StandardLine Checkweigher for Food Non-Food Applications
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Timbangan Cek Standar C31
Availability: InStock

Rumah Produk Timbangan Otomatis

Dependable Accurate C31 StandardLine Checkweigher for Food Non-Food Applications

Detail produk:

Tempat asal:	Cina
Nama merek:	Mettler Toledo
Nomor model:	Timbangan Cek Standar C31

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	kotak karon
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 ditetapkan per bulan

Kontak

Detil Deskripsi produk

Produk:	Timbangan Cek Standar C31	Aplikasi Inspeksi:	Kelengkapan Periksa Kontrol Berat Badan
Industri:	Komponen Logam Makanan & Minuman Kimia, Plastik dan Elektronik	Penimbangan akurasi:	dari ± 1 g
Berat produk maks:	6 kg	Kecepatan garis maks:	180 m/mnt
Throughput maks:	200 ppm	Perangkat Lunak yang Kompatibel:	Prodx
Teknologi penimbangan:	Pengukur Regangan	Jenis pengemasan:	Tas, botol, bundel, kardus, karton, kasing, kaleng komposit, paket aliran, nampan, VFFS
Karakteristik Produk:	Beku Dalam, Kering, Paket Sedang-Besar, Wadah Bulat Terbuka, Produk Terbungkus Individu Kecil, Paket	Segmen industri:	Otomotif, toko roti dan permen Bir, anggur dan minuman beralkohol lainnya Kosmetik Susu
Menyoroti:	C31 StandardLine checkweigher for food , C31 StandardLine checkweigher , Mettler Toledo load cell checkweigher

Dependable Accurate C31 StandardLine Checkweigher for Food & Non-Food Applications

Product Overview

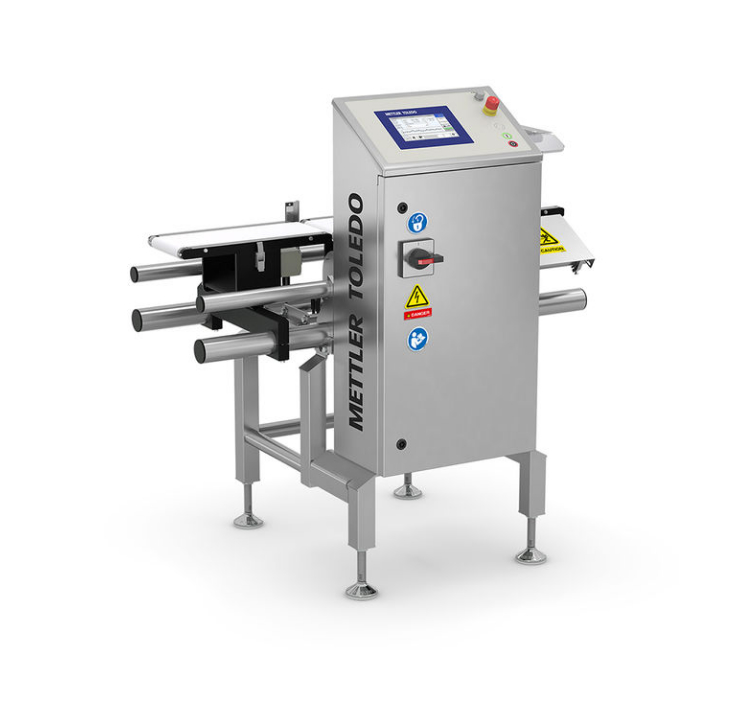

The C31 StandardLine is a highly efficient and reliable checkweigher designed for in-motion weighing of products. It accurately verifies product weight and sorts out under- or overweight items at speeds up to 200 items per minute. With its robust, modular design, the C31 is an ideal and cost-effective solution for a wide range of food and non-food applications.

Key Features

Robust Design: Sturdy tube frame and robust components minimize vibration, delivering stable, accurate performance
User-Friendly Operation: Switch products easily with intuitive interface and key status displays (available in 30 languages)
Future-Ready Flexibility: Easily expandable to meet future production requirements without investing in new systems
High Efficiency: Processes up to 200 items per minute with weighing accuracy from ±1 g

Technical Specifications

Attribute	Value
Model No	2400310000
IP Rating	IP54, IP65
Compatible Software	ProdX
Connectivity	Ethernet TCP/IP, Fieldbus, OPC UA
Max Product Width	400 mm
Max Weighing Zones	3
Weighing Technology	Strain Gauge
HMI	7" Touchscreen

Applications

The C31 StandardLine checkweigher is suitable for various industries including:

Chemical
Food & Beverage
Metal, Plastic and Electronics Components
Automotive
Bakery and Confectionery
Beer, Wine and Other Alcoholic Beverages
Cosmetics
Dairy

Product Attributes

Inspection Application

Completeness Check, Weight Control

Weighing Accuracy

from ±1 g

Max Product Weight

6 kg

Max Line Speed

180 m/min

Max Throughput

200 ppm

Packaging Type

Bags, Bottles, Bundles, Cartons, Cases, Flow Packs, Trays
