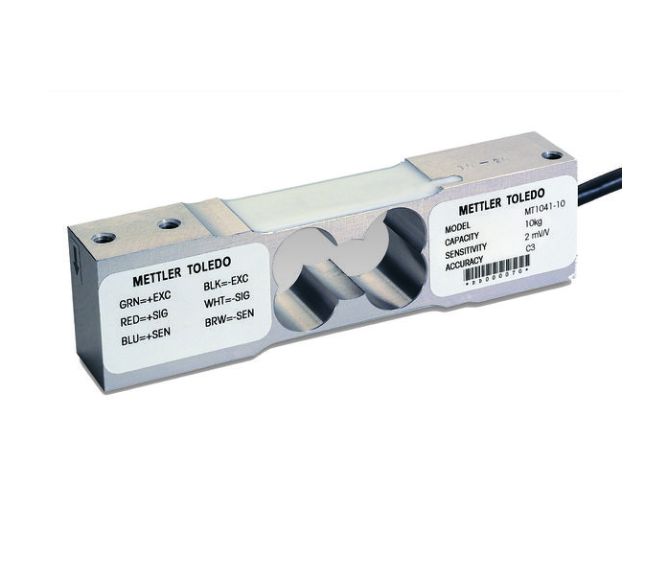

Name: 100kg Load Cell MT1041 with 2m Cable – Precision Heavy-Duty Weight Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Muat sel MT1041-100kg 2m
Availability: InStock

Rumah Produk

100kg Load Cell MT1041 with 2m Cable – Precision Heavy-Duty Weight Sensor

Detail produk:

Tempat asal:	Cina
Nama merek:	Mettler Toledo
Nomor model:	Muat sel MT1041-100kg 2m

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	kotak karon
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 ditetapkan per bulan

Kontak

Detil Deskripsi produk

produk:	Sel beban Mettler Toledo	Kapasitas maksimum:	220 lb (100 kg)
Bahan:	Aluminium, pasif	metrologi:	NTEP III 5.000D OIML C3
Keakuratan:	Standar	Peringkat perlindungan:	IP67
Ukuran Platform (LXW):	400 mm x 400 mm	Konektivitas:	Analog
kabel:	6,6 kaki (2 m)
Menyoroti:	100kg load cell with 2m cable , heavy-duty weight sensor MT1041 , Mettler Toledo precision load cell

100kg Load Cell MT1041 with 2m Cable – Precision Heavy-Duty Weight Sensor

A high-performance compression weigh module designed for industrial applications where weight is applied between top and base plates. Ideal for direct attachment to ground, piers, or structural beams.

Key Features

High-performance single point load cell with off-center compensation
Reliable strain gauge technology for long-term durability
ATEX Zone 1/21/2/22 approvals for hazardous area usage
Metrology approvals include OIML as standard
IP67 protection rating for harsh environments

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	220 lb (100 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Analog
Cable	6.6 ft (2 m) PVC

Application Details

Designed for mid-size platforms, this compression load cell is typically used in multiples under large platform scales such as truck and railroad track scales, as well as in tank, hopper and silo weighing applications. Capacities range from 3 kg to 300 tons.

Material Number: 71201838
Note: All specifications are standard - no need for additional options or variations.
