Name: SWB805 SS Weigh Module – 220kg/500lb Load Cell C3 Stainless Steel Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Bobot modul SWB805 316 4.4T/10K C1
Availability: InStock

Rumah Produk

SWB805 SS Weigh Module – 220kg/500lb Load Cell C3 Stainless Steel Sensor

Detail produk:

Tempat asal:	Cina
Nama merek:	Mettler Toledo
Nomor model:	Bobot modul SWB805 316 4.4T/10K C1

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	kotak karon
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 ditetapkan per bulan

Kontak

Detil Deskripsi produk

produk:	Sel beban Mettler Toledo	Kapasitas maksimum:	500 lb (220 kg)
Bahan:	Baja tahan karat 304	metrologi:	OIML C3, NTEP III 5M
Muat sel:	SLB815	Keakuratan:	Standar
Peringkat perlindungan:	IP68/69K	Lingkungan / material:	Sering mencuci / higienis
Persetujuan Berbahaya:	ATEX, FM, CFM	KRIMITAS:	Standar
kabel:	5 M
Menyoroti:	stainless steel weigh module , 500lb load cell sensor , Mettler Toledo load cell

SWB805 SS Weigh Module – 220kg/500lb Load Cell C3 Stainless Steel Sensor

Certified Hygienic Solution

Our weigh module is designed according to hygienic principles and certified by NSF, reducing contamination risk to a minimum.

Reduced Cleaning Time

Increased efficiency thanks to highly-polished, self-draining surfaces that clean and dry quickly. Visual inspection is easy due to the open design.

Easy to integrate

Our weigh modules are shipped in a locked position and can be integrated without interfering with the sealing, eliminating contamination risks.

Product Description

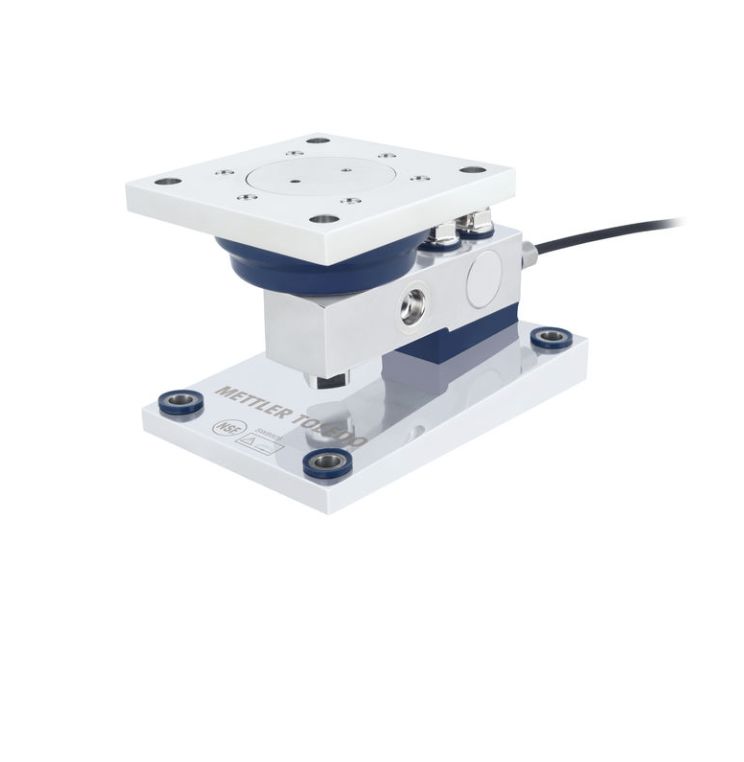

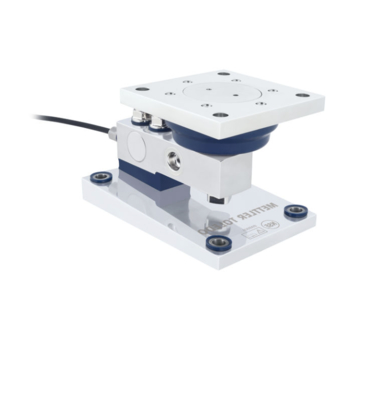

A compression weigh module designed so that its top plate and base plate compress when weight is applied. It can be attached directly to the ground, piers, or structural beams. These modules are typically used in multiples under large platform scales such as truck and railroad track scales, as well as in tank, hopper, and silo weighing applications. Capacities range from 3 kg to 300 tons.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	500 lb (220 kg)
Material	304 Stainless steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB815
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Frequent wash-down / Hygienic
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	5 m
