Name: SWB805 Weigh Module 4.4T/10K C1 – 316 Stainless Steel High-Accuracy Load Cell
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Bobot modul SWB805 316 4.4T/10K C1
Availability: InStock

Rumah Produk

SWB805 Weigh Module 4.4T/10K C1 – 316 Stainless Steel High-Accuracy Load Cell

Detail produk:

Tempat asal:	Cina
Nama merek:	Mettler Toledo
Nomor model:	Bobot modul SWB805 316 4.4T/10K C1

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	kotak karon
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 ditetapkan per bulan

Kontak

Detil Deskripsi produk

produk:	Sel beban Mettler Toledo	Kapasitas maksimum:	10.000 lb (4.400 kg)
Bahan:	Baja Tahan Karat 316	metrologi:	NTEP III 1,6 M OIML C1
Muat sel:	SLB815	Keakuratan:	Rendah
Peringkat perlindungan:	IP68/69K	Lingkungan / material:	Sering mencuci / higienis
Persetujuan Berbahaya:	ATEX, FM, CFM	KRIMITAS:	Standar
kabel:	5 M
Menyoroti:	316 stainless steel weigh module , high-accuracy 10K load cell , Mettler Toledo 4.4T load cell

SWB805 Weigh Module 4.4T/10K C1 – 316 Stainless Steel High-Accuracy Load Cell

Certified Hygienic Solution

Our weigh module is designed according to hygienic principles and certified by NSF, reducing contamination risk to a minimum.

Reduced Cleaning Time

Increased efficiency thanks to highly-polished, self-draining surfaces that clean and dry quickly. Visual inspection is easy due to the open design.

Easy to integrate

Our weigh modules are shipped in a locked position and can be integrated without interfering with the sealing, thus no risk of contamination.

Product Description

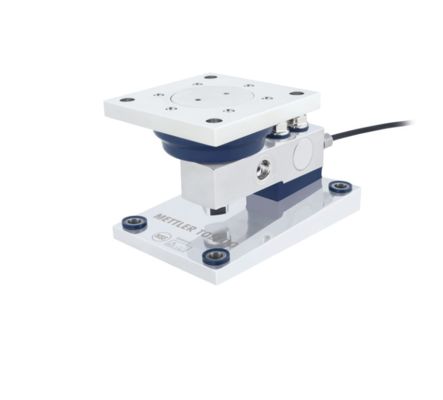

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied. It can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	10,000 lb (4,400 kg)
Material	316 Stainless steel
Metrology	NTEP III 1.6 M OIML C1
Load Cell	SLB815
Accuracy	Low
Protection Rating	IP68/69k
Environment / Material	Frequent wash-down / Hygienic
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	5 m
