Name: 30t SWC415 PM CS Weigh Module – Carbon Steel Heavy-Duty Load Cell System
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modul Berat SWC415 PM SS 15t
Availability: InStock

Rumah Produk

30t SWC415 PM CS Weigh Module – Carbon Steel Heavy-Duty Load Cell System

Detail produk:

Tempat asal:	Cina
Nama merek:	Mettler Toledo
Nomor model:	Modul Berat SWC415 PM SS 15t

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	kotak karon
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 ditetapkan per bulan

Kontak

Detil Deskripsi produk

produk:	Sel beban Mettler Toledo	Kapasitas maksimum:	66.000 lb (30.000 kg)
Bahan:	Baja Berlapis Seng	metrologi:	OIML C3, NTEP IIIL 10.000
Muat sel:	0782/GD	Keakuratan:	Standar
Peringkat perlindungan:	IP68/69K	Lingkungan / material:	Baja normal / karbon
Persetujuan Berbahaya:	Atex, fm IEC ex	KRIMITAS:	Standar
kabel:	13 m
Menyoroti:	carbon steel weigh module , heavy-duty load cell system , Mettler Toledo weigh module

30t SWC415 PM CS Weigh Module – Carbon Steel Heavy-Duty Load Cell System

Key Features

Cost Efficient: Economical solution with highly accurate, fully approved stainless load cells suitable for diverse applications
Safety & Protection: Features 360-degree self-checking, dual lift-off protection, hazardous area approvals, and IP68/IP69K-rated load cell
Ease of Installation: Lightweight, low-profile design with SafeLock technology for secure alignment during installation

Product Description

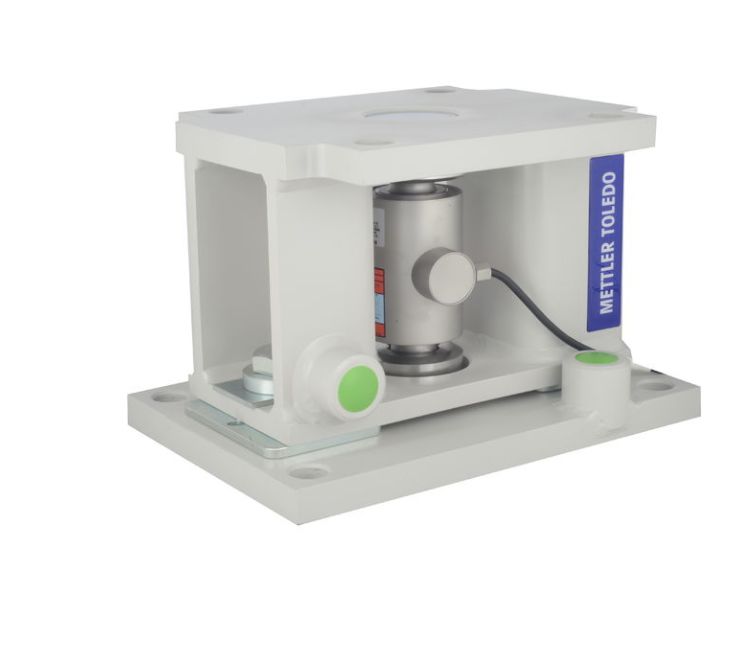

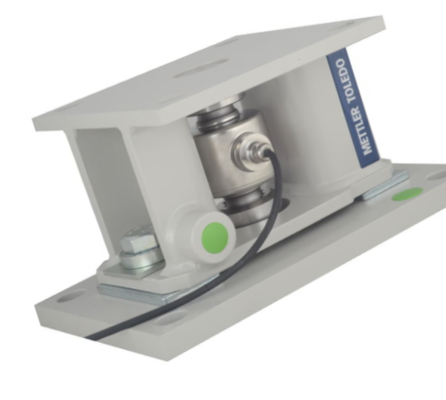

The 30t SWC415 PM CS compression weigh module is engineered for heavy-duty industrial applications. Its design allows the top plate and base plate to compress when weight is applied, enabling direct attachment to ground surfaces, piers, or structural beams. This system is ideal for large-scale weighing applications including truck scales, railroad track scales, and tank/hopper/silo weighing systems, with capacity ranges from 3 kg to 300 tons.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	66,000 lb (30,000 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX, FM IEC Ex
Criticality	Standard
Cable	13 m
