Name: 100 Ton SWC515 Carbon Steel Construction Load Cell Module for Industrial Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: BERAT MODUL SWC615 PM SS 90T S3A
Availability: InStock

Rumah Produk

100 Ton SWC515 Carbon Steel Construction Load Cell Module for Industrial Weighing

Detail produk:

Tempat asal:	Cina
Nama merek:	Mettler Toledo
Nomor model:	BERAT MODUL SWC615 PM SS 90T S3A

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	kotak karon
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 ditetapkan per bulan

Kontak

Detil Deskripsi produk

produk:	Sel beban Mettler Toledo	Kapasitas maksimum:	220.000 lb (100.000 kg)
Bahan:	Baja ringan galvanis	metrologi:	OIML C3, NTEP IIIL 10.000
Muat sel:	0782/gd, kabel 13 m	Keakuratan:	Standar
Peringkat perlindungan:	IP68/69K	Lingkungan / material:	Baja normal / karbon
Persetujuan Berbahaya:	ATEX, FM	KRIMITAS:	Standar
Menyoroti:	100 ton carbon steel load cell , industrial weighing load cell module , SWC515 construction load cell

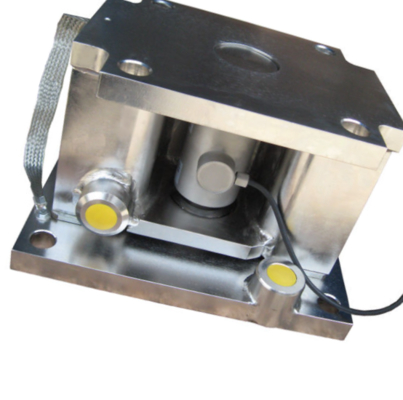

100 Ton SWC515 Carbon Steel Construction Load Cell Module for Industrial Weighing

Key Features

Multi-purpose design: Suitable for static & dynamic tanks, hoppers, mixers & conveyors
Safety features: 360° self-checking, dual lift-off & down-stops, ground strap
Hazardous approvals: ATEX and FM certified for safe operation in challenging environments
Easy installation: Lightweight, low profile design with flexible orientation
High protection: IP68/69k rated stainless steel load cell

Product Description

The SWC515 compression weigh module is engineered with a top plate and base plate that compress when weight is applied. Designed for direct attachment to ground surfaces, piers, or structural beams, this module is ideal for large-scale industrial weighing applications.

Common applications include truck scales, railroad track scales, and tank/hopper/silo weighing systems. With a capacity range from 3 kg to 300 tons, these modules provide reliable performance across various industrial weighing needs.

Technical Specifications

Attribute	Specification
Product	Mettler Toledo Load Cell
Maximum Capacity	220,000 lb (100,000 kg)
Material	Mild Steel galvanized
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD, 13 m cable
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
