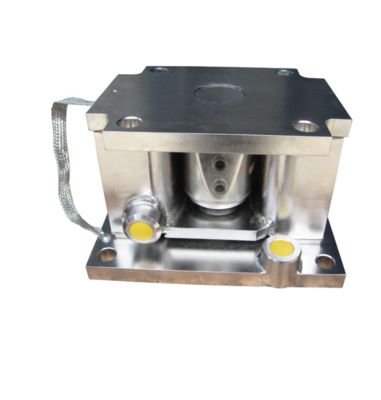

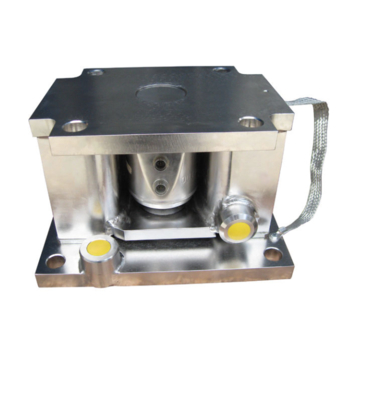

Name: Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: BERAT MODUL SWC615 PM SS 90T S3A
Availability: InStock

Rumah Produk

Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction

Detail produk:

Tempat asal:	Cina
Nama merek:	Mettler Toledo
Nomor model:	BERAT MODUL SWC615 PM SS 90T S3A

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	kotak karon
Waktu pengiriman:	10-30 hari
Menyediakan kemampuan:	2000 ditetapkan per bulan

Kontak

Detil Deskripsi produk

produk:	Sel beban Mettler Toledo	Kapasitas maksimum:	198,000 lb (90,000 kg)
Bahan:	Stainless Steel, Grade 304	metrologi:	OIML C3, NTEP IIIL 10.000
Muat sel:	Powercell PDX	Keakuratan:	Standar
Peringkat perlindungan:	IP68/69K	Lingkungan / material:	Pencucian / stainless steel
Persetujuan Berbahaya:	ATEX ZONE 2/22 UL Divisi 2	KRIMITAS:	Pemantauan Kondisi
Menyoroti:	90 ton heavy-duty load cell , SWC615 PM S3A load cell , stainless steel load cell module

Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction

Product Overview

A robust compression weigh module designed for direct attachment to ground, piers, or structural beams. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features

Multi-Purpose Application

Suitable for static & dynamic tanks, hoppers, mixers, and conveyors. Features a high-accuracy, fully approved stainless hermetic load cell for all industrial applications.

Enhanced Safety & Protection

Includes 360° self-checking, dual lift-off & down-stops, ground strap, hazardous area approvals, and IP68-rated stainless steel load cell for maximum reliability.

Predictive Diagnostics

Monitors individual load cells for overload conditions, temperature fluctuations, breach detection, and zero drift to prevent system failures and measurement errors.

Technical Specifications

Material	Stainless steel, grade 304
Material Number	30057237
Maximum Capacity	198,000 lb (90,000 kg)
Protection Rating	IP68/69k
Environment/Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX Zone 2/22, UL Division 2
Load Cell	POWERCELL PDX
Accuracy	Standard
Metrology Certification	OIML C3, NTEP IIIL 10,000
